SKU: 730835

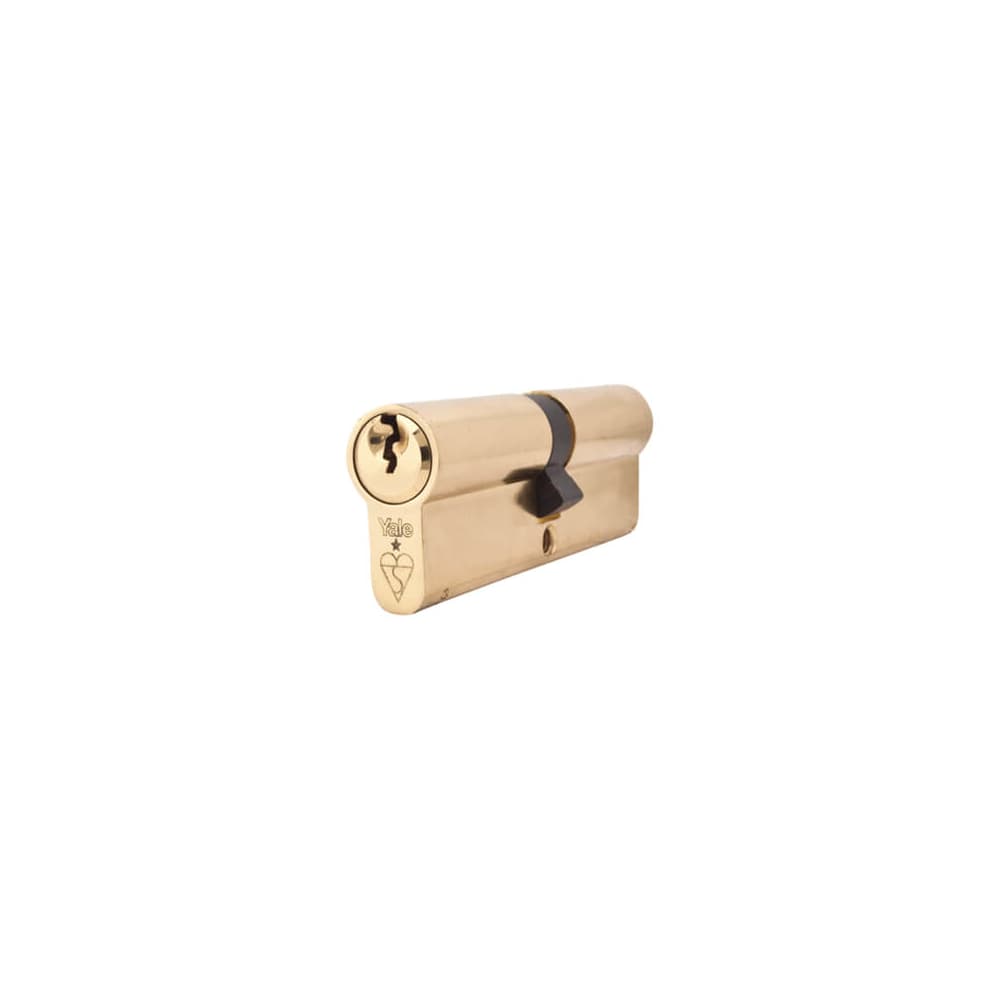

Yale 1 Star 6 Pin Kitemarked 90mm Euro Double Cylinder -45 + 45mm - Polished Brass - Keyed to Differ
4.0
(1)
6 in stock
The Yale Kitemarked Euro Profile cylinder has been developed to provide resistance against common cylinder attack methods
Buy in bulk & save up to 5%
About this product

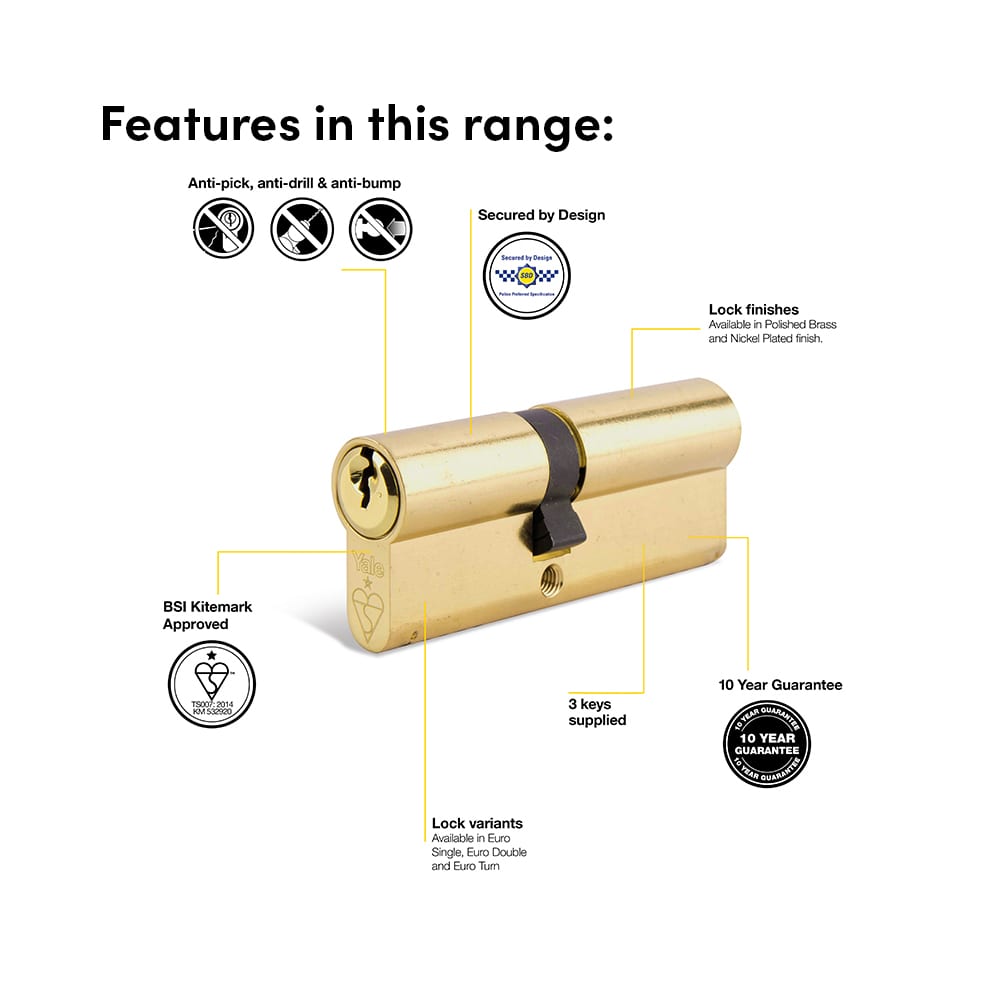

- The Yale Kitemarked Euro Profile cylinder has been developed to provide resistance against common cylinder attack methods
- Tested to the British Standard BS EN1303:2005 the cylinder is suitable as a replacement product on uPVC, wood & composite doors that require a high level of security & attack protection
- The cylinder is Kitemark & Secured by Design approved
- Anti-bump, anti-pick, anti-screw & anti-drill protection
- 6 pin cylinder
- TS007:2011 1 star to comply with the latest standards
- Supplied with 3 keys
- 10 year guarantee
Specification & Documentation
A
90
Anti Bump
Yes
Anti Drill
Yes
Anti Pick
Yes
B
45
British Standard
Yes
C
45
CE Rated
No
Finish
Polished Brass
Keying Option
Keyed To Differ
Length (mm)
90
Option
Double
Secured by Design
Yes
Security Level
6 Pin 1 Star
Split Size (mm)
45 45
Type
Euro Profile
Fire Rating
60
Finish Group
Brass
UKCA Approved
No
Documents
