SKU: 317630

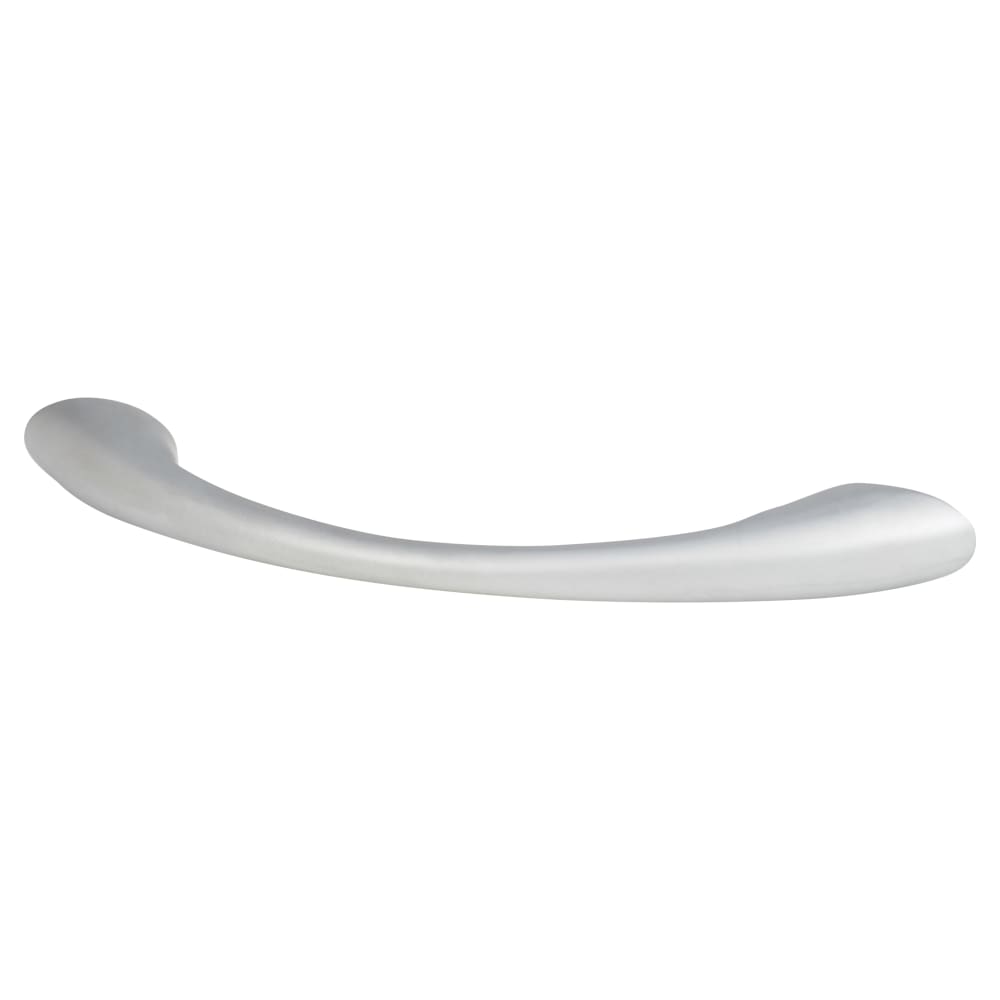

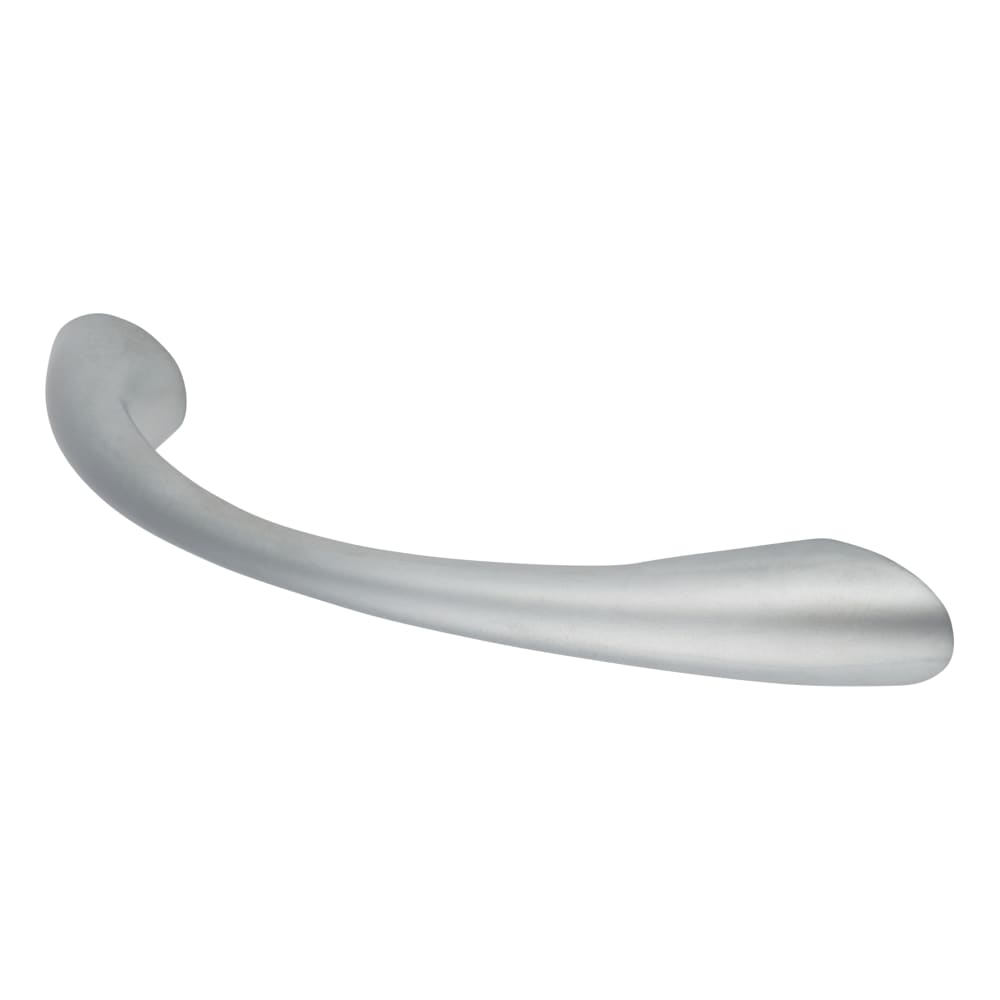

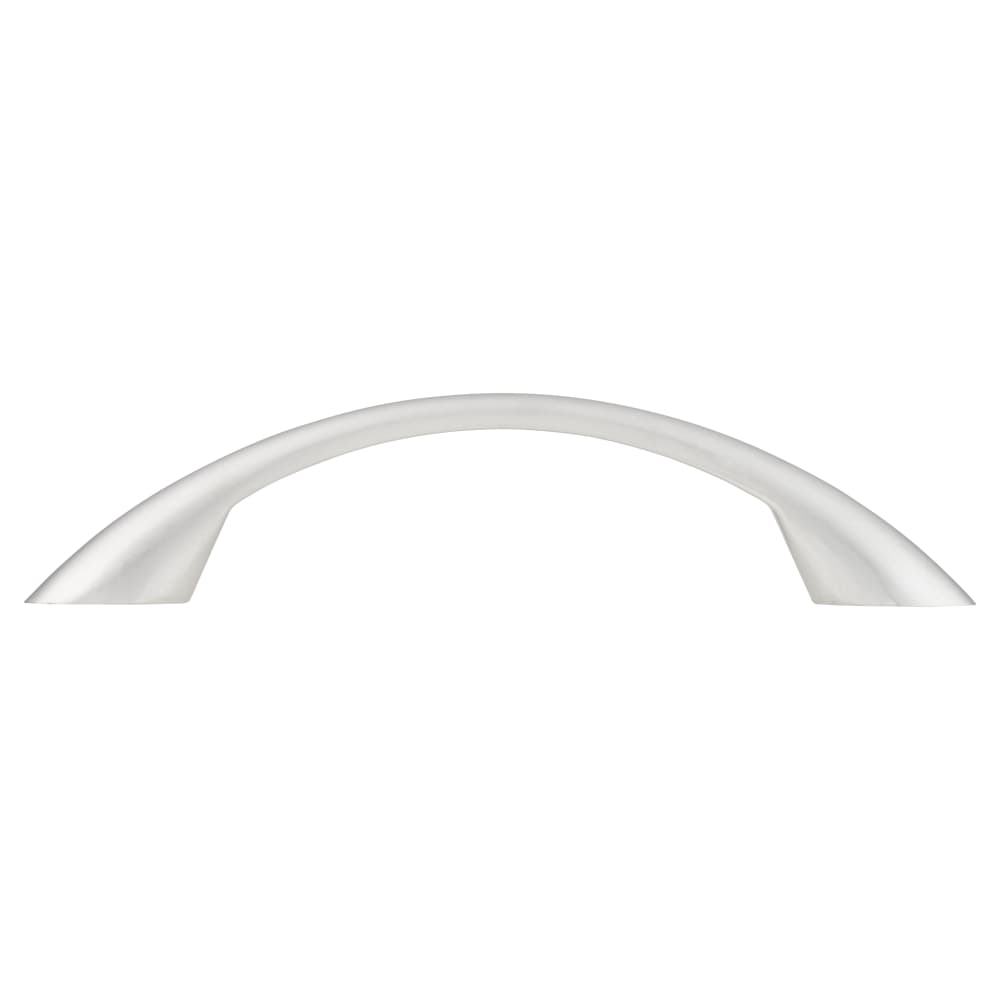

Touchpoint Vali Bow Cabinet Pull Handle - 96mm Centres - Matt Chrome
5.0
(3)
1,074 in stock
This quality cabinet handle will compliment any style of kitchen, bedroom or study desk door or drawers
Buy in bulk & save up to 9%
About this product
- This quality cabinet handle will compliment any style of kitchen, bedroom or study desk door or drawers
- Manufactured from zinc for long lasting durability
- Centres: 96mm
- Projection: 28mm
- Length: 134mm
Specification & Documentation
Centres (mm)
96
Finish
Satin Chrome
Finish Group
Chrome
Material
Zinc
Projection (mm)
28
Size (mm)
134 x 7 x 28
Type
Bow Handles
Width (mm)
7
Length (mm)
134
About this product
- This quality cabinet handle will compliment any style of kitchen, bedroom or study desk door or drawers
- Manufactured from zinc for long lasting durability
- Centres: 96mm
- Projection: 28mm
- Length: 134mm
Specification & Documentation
Centres (mm)
96
Finish
Satin Chrome
Finish Group
Chrome
Material
Zinc
Projection (mm)
28
Size (mm)
134 x 7 x 28
Type
Bow Handles
Width (mm)
7
Length (mm)
134
- Manufactured from aluminium
- Ideal for low use domestic projects
