SKU: 716172

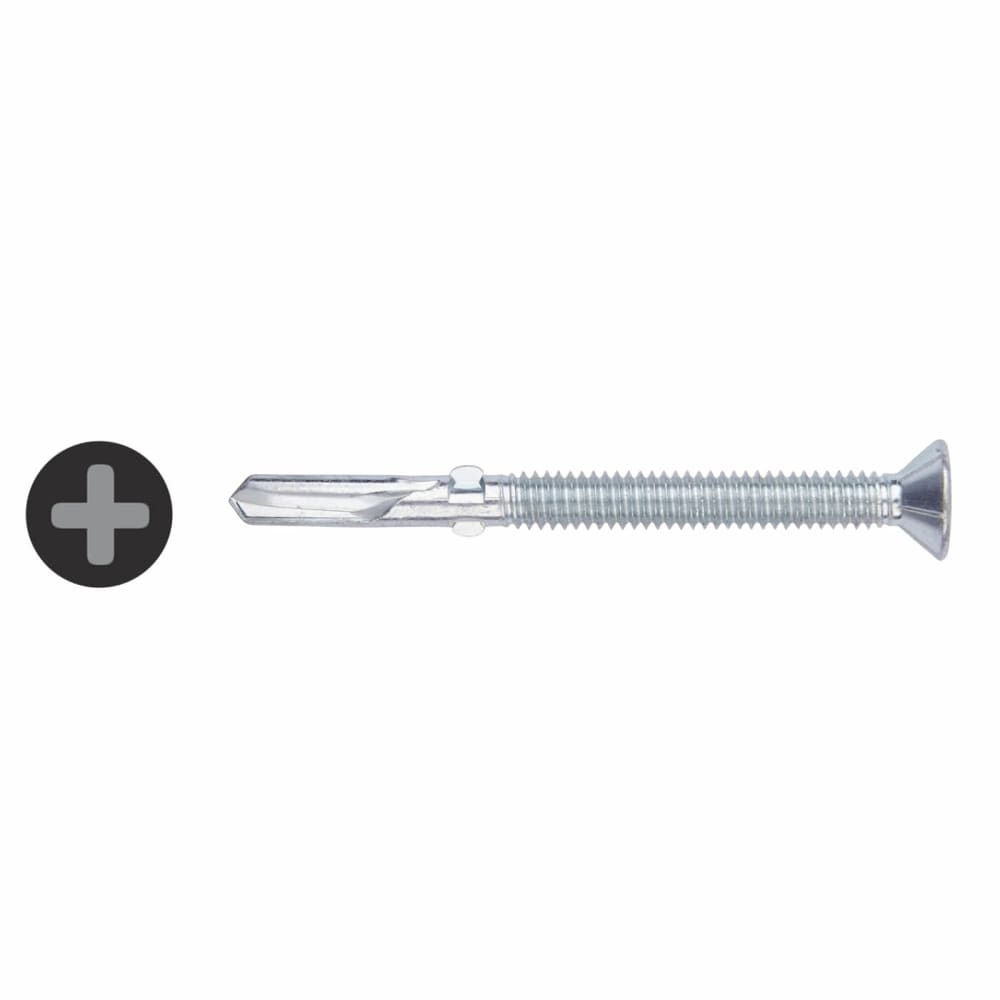

TIMCO Wing Tip Self Drilling Screw for Heavy Section Steel - 5.5 x 85mm - Pack of 100
4.7
(6)
11 in stock
Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
Select Size (mm)
About this product
- Up to 10x longer life than a standard impact driver bit
- Designed to handle the most demanding impact driving applications
- Superior drive fins for maximum grip and reduced 'cam out'
- Unbeatable break resistance
Specification & Documentation
Bit Size
PZ2
Pack Quantity
10
Type
Pozi
Length (mm)
25
Material
Hardened Carbon Steel
About this product
- Up to 10x longer life than a standard impact driver bit
- Designed to handle the most demanding impact driving applications
- Superior drive fins for maximum grip and reduced 'cam out'
- Unbeatable break resistance
Specification & Documentation
Bit Size
PZ2
Pack Quantity
10
Type
Pozi
Length (mm)
25
Material
Hardened Carbon Steel
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
100
Size (mm)
5.5 x 85
Washer
Without
Material
Hardened Carbon Steel
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
100
Size (mm)
5.5 x 85
Washer
Without
Material
Hardened Carbon Steel
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
100
Size (mm)
5.5 x 120
Washer
Without
Material
Hardened Carbon Steel
Documents
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
100
Size (mm)
5.5 x 120
Washer
Without
Material
Hardened Carbon Steel
Documents
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
200
Size (mm)
5.5 x 65
Washer
Without
Material
Hardened Carbon Steel
Documents
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
200
Size (mm)
5.5 x 65
Washer
Without
Material
Hardened Carbon Steel
Documents
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
200
Size (mm)
5.5 x 45
Washer
Without
Material
Hardened Carbon Steel
Documents
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
200
Size (mm)
5.5 x 45
Washer
Without
Material
Hardened Carbon Steel
Documents
About this product
- For fixing sheet steel to sheet steel - max drill thickness 12.5mm
- 5/16 hex head drive
- Supplied with 16mm EPDM washer
- Torque relieving slot and flutes
- 1,000 hour salt spray tested
Specification & Documentation
Bit Size
6-8mm
Finish
Silver Ruspert
Head Type
Hex
Pack Quantity
100
Size (mm)
5.5 x 80
Washer
With
Material
Hardened Carbon Steel
Documents
About this product
- For fixing sheet steel to sheet steel - max drill thickness 12.5mm
- 5/16 hex head drive
- Supplied with 16mm EPDM washer
- Torque relieving slot and flutes
- 1,000 hour salt spray tested
Specification & Documentation
Bit Size
6-8mm
Finish
Silver Ruspert
Head Type
Hex
Pack Quantity
100
Size (mm)
5.5 x 80
Washer
With
Material
Hardened Carbon Steel
Documents
This product is rated 4.7 out of 5 by other customers
great if you need to fix 4x2 timber on to mild ste
good screws, bit expensive, will self drill through timber (then as designed) the wings break off and it will self drill into 1.5mm steel section. great if you need to fix 4x2 timber on to mild steel / metsec studs
Good choice for the job
Bought these to attach timber fence rails to a galvanised field gate post. Pre drilled the timber then drove these in with an impact driver. Three rails done in a flash two fixings on each. Fence now feels sturdy. Will be using again and would recommend.
Perfect for adding a stop bar to my side entrance steel gate post
Have now bought a number of things from ironmongery direct. Items arrive promptly. I had initially tried to get these screws from my local B&Q and Wickes who didn't have them. I found exactly what I wanted on ironmongery direct. The box of screws arrived next day, and gate post was fixed within an hour of receiving the screws. I only needed 3 screws so now have a box of 97 spare!
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
About this product
- Ideal for fixing timber to steel - max thickness 12.5mm Phillips no. 3 drive
- Wings ream clearance holes in timber preventing material jacking
Specification & Documentation
Bit Size
PH3
Finish
Zinc Plated
Head Type
Phillips
Pack Quantity
100
Size (mm)
5.5 x 85
Washer
Without
Material
Hardened Carbon Steel
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
FKWK - 3 years ago
Ok, but thought they'd be better.
They're ok, but took a while to get through the steel, probably one in ten failed to do so. I was drilling through 7 - 8mm steel to fix timber plates.
Was this review helpful?
Verified customer
Posh Spice - 3 years ago
great if you need to fix 4x2 timber on to mild ste
good screws, bit expensive, will self drill through timber (then as designed) the wings break off and it will self drill into 1.5mm steel section. great if you need to fix 4x2 timber on to mild steel / metsec studs
Was this review helpful?
Verified customer
D evans - 5 years ago
Good choice for the job
Bought these to attach timber fence rails to a galvanised field gate post. Pre drilled the timber then drove these in with an impact driver. Three rails done in a flash two fixings on each. Fence now feels sturdy. Will be using again and would recommend.
Was this review helpful?
Verified customer
P Burton - 5 years ago
Perfect for adding a stop bar to my side entrance steel gate post
Have now bought a number of things from ironmongery direct. Items arrive promptly. I had initially tried to get these screws from my local B&Q and Wickes who didn't have them. I found exactly what I wanted on ironmongery direct. The box of screws arrived next day, and gate post was fixed within an hour of receiving the screws. I only needed 3 screws so now have a box of 97 spare!
Was this review helpful?
Verified customer
Mark Wol - 6 years ago
TIMco Wing Tip Self Drilling Screw for Heavy Section Steel - 5.5 x 85mm - Pack 100.
Excellent quality, would definitely recommend for fixing in to steel
Was this review helpful?
Verified customer
