SKU: 992295

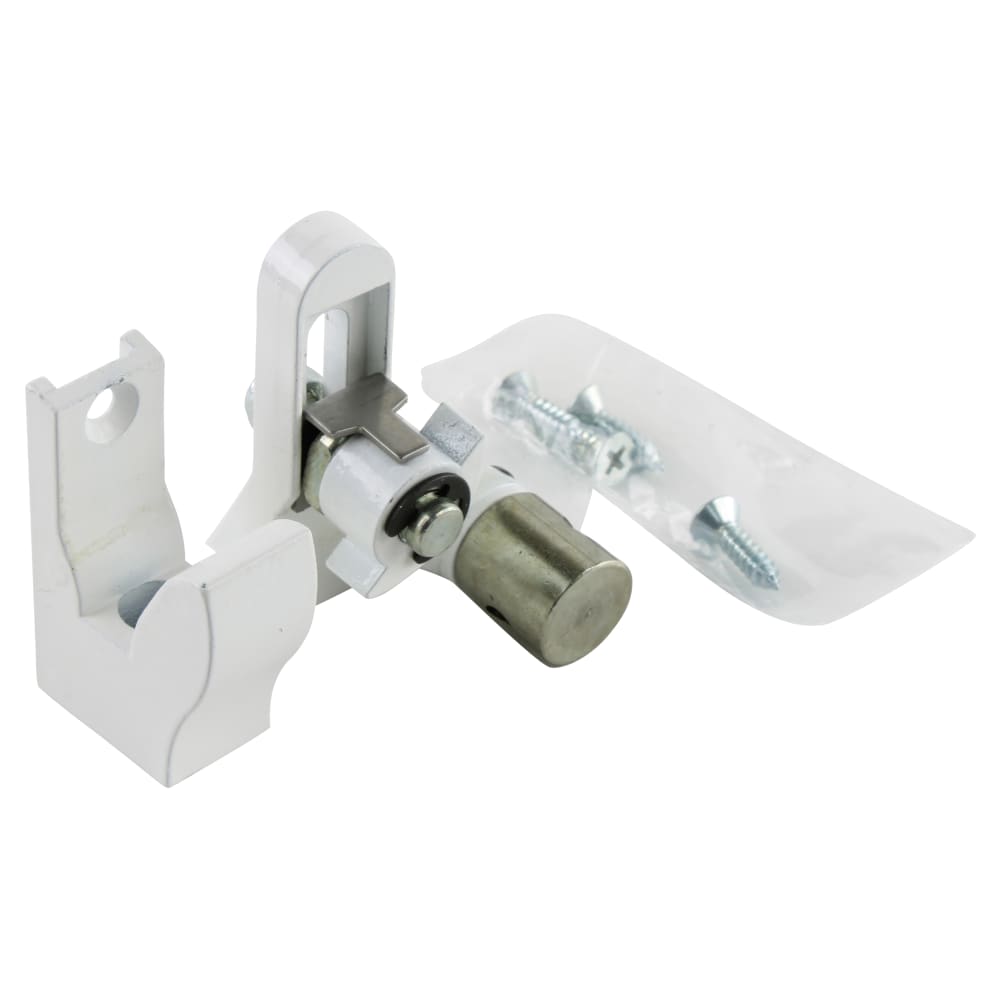

Teleflex Clearline Locking Opener - White
0.0
(0)
3 in stock
Can only open bottom hinged windows which do not require pushing force for the opening
£17.95each+ VAT
VAT
Free returns within 28 days
About this product
- Can only open bottom hinged windows which do not require pushing force for the opening
- Maximum opening stroke: 250mm, can be adjusted for the end stroke spring placed in correspondence of the control operator
- The needed space for the installation is 20mm from the vent external limit.
- For windows with a height below 50cm it is necessary to reduce the stroke to 1/3 of the window height
- In systems with more windows it is necessary to use rotary junction boxes to transmit the cable movement from the main line to the auxiliary ones
- For windows wider than 1.5m it is necessary to apply two or more thrust points
About this product
- Can only open bottom hinged windows which do not require pushing force for the opening
- Maximum opening stroke: 250mm, can be adjusted for the end stroke spring placed in correspondence of the control operator
- The needed space for the installation is 20mm from the vent external limit.
- For windows with a height below 50cm it is necessary to reduce the stroke to 1/3 of the window height
- In systems with more windows it is necessary to use rotary junction boxes to transmit the cable movement from the main line to the auxiliary ones
- For windows wider than 1.5m it is necessary to apply two or more thrust points
Specification & Documentation
Application
uPVC, Timber & Aluminium
Finish
White
Finish Group
White
Option
Manual
Type
Manual Opener Component
Material
Mild Steel
Pack Quantity
1
Documents
Reviews
Questions
No Questions
