SKU: 180915

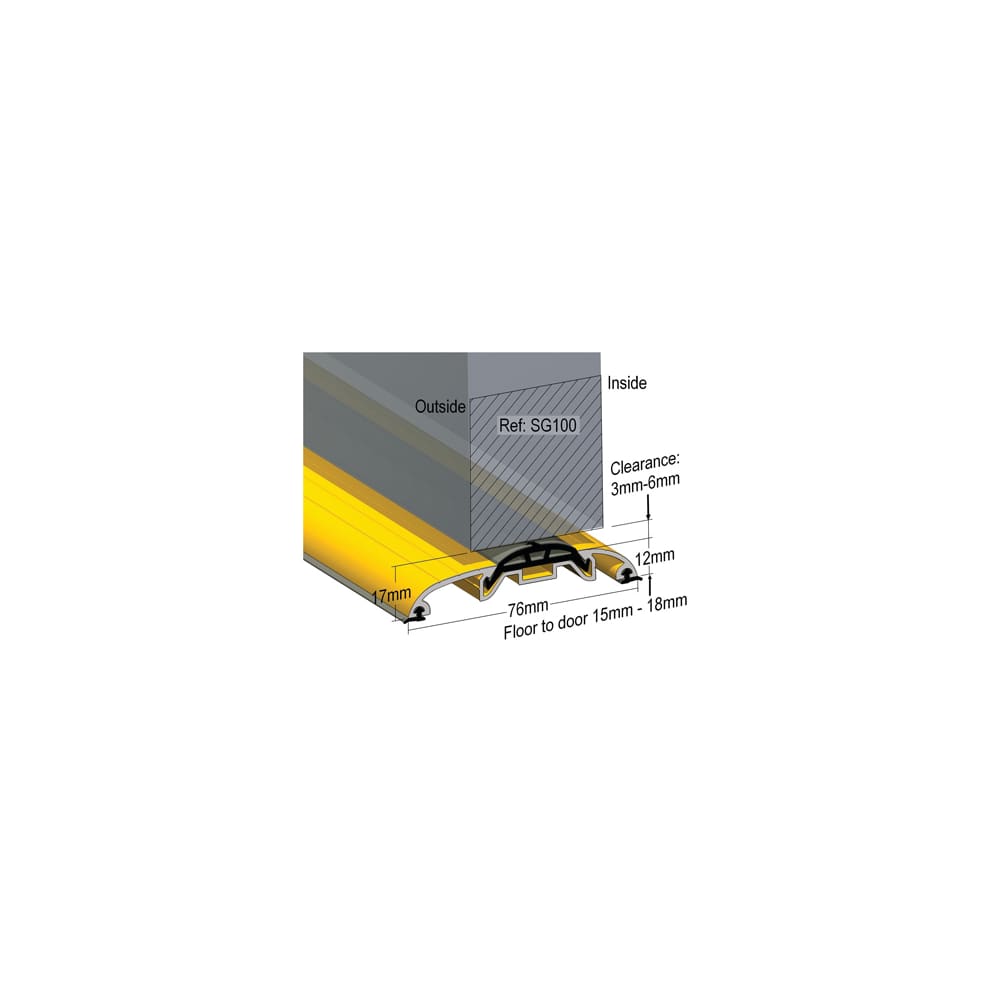

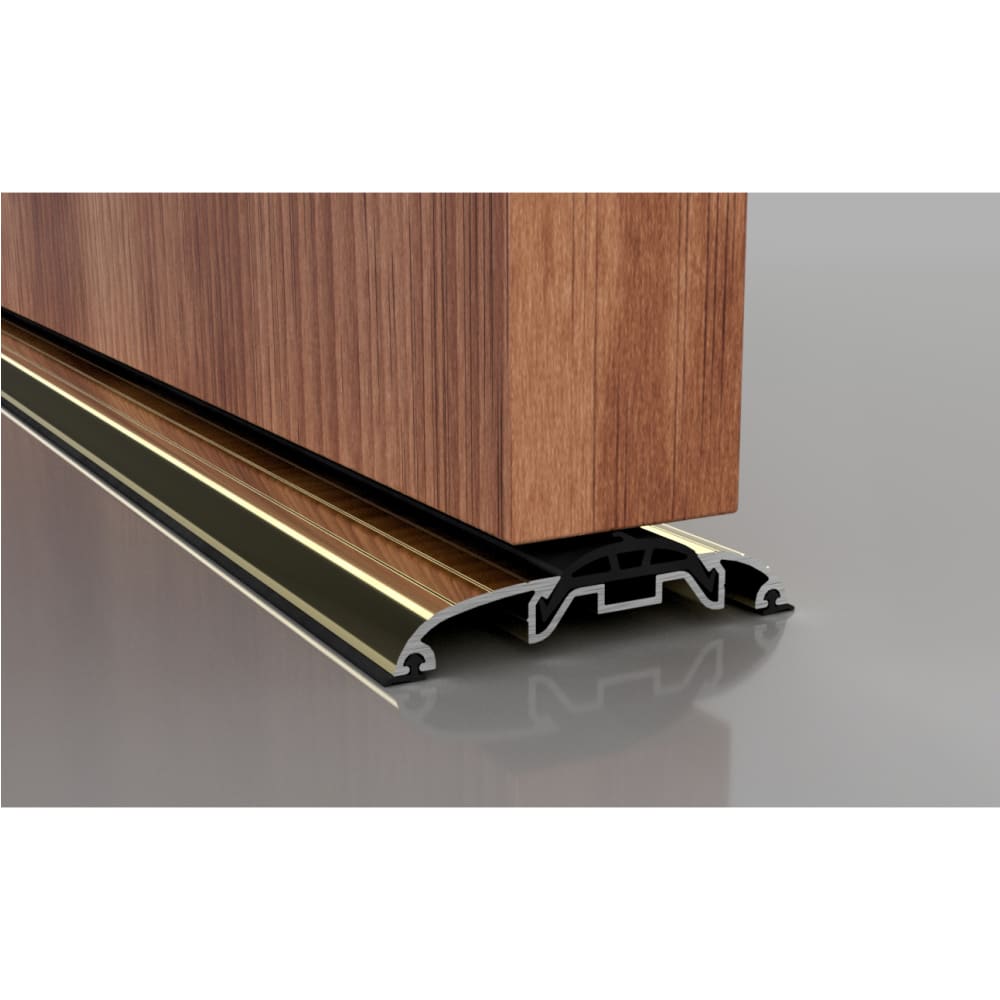

Stormguard SG100 Threshold - 2000mm Length - Inward/Outward Opening Doors - Gold Anodised
5.0
(2)
11 in stock
For inward or outward opening doors
£31.40
This item carries a £4.95 large item surcharge - x1 surcharge per order!
- For inward or outward opening doors
- Low profile with concealed fixings
- Central rubber seal
- Easy access for light wheeled traffic
- 17mm floor to door clearance, up to 3mm tolerance
- Part-M Regulation Compliant, Wheelchair access, BS8300 &bul; Central Nitrile seal with lower seals requires no additional sealant
- Aluminium and nitrite construction BS EN-1474
Specification & Documentation
DocM
Yes
Door Opening
Inward/Outward Opening
Equality Act Compliant
Yes
Finish
Gold Anodised
Seal Gap Range
15-18mm
Size (mm)
2000 x 76 x 17
Type
Thresholds
Width (mm)
76
Length (mm)
2000
Material
Aluminium
- For inward or outward opening doors
- Low profile with concealed fixings
- Central rubber seal
- Easy access for light wheeled traffic
- 17mm floor to door clearance, up to 3mm tolerance
- Part-M Regulation Compliant, Wheelchair access, BS8300 &bul; Central Nitrile seal with lower seals requires no additional sealant
- Aluminium and nitrite construction BS EN-1474
Specification & Documentation
DocM
Yes
Door Opening
Inward/Outward Opening
Equality Act Compliant
Yes
Finish
Gold Anodised
Seal Gap Range
15-18mm
Size (mm)
2000 x 76 x 17
Type
Thresholds
Width (mm)
76
Length (mm)
2000
Material
Aluminium
- Fire door hinge suitable for doors up to 80kg
- 30 minute fire rating
- Medium duty - for low use public areas
- For interior use
- BS EN Grade 11
- All our fire door hinges are CE marked
- NOTE: Intumescent pads should be used to ensure adherence to fire regulations
- Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
- A budget steel fire door hinge with twin ball bearings for interior fire doors up to 80kg weight. As with all fire door hinges, hang doors on 3 hinges and use intumescent pads to meet the exact requirements for the fire door rating. For heavier doors, exterior doors and doors prone to damp such as kitchens and bathrooms, we recommend using solid stainless steel hinges.
Specification & Documentation
British Standard
Yes
BSEN Grade
11
Certifire
No
Corners
Square
Duty
Medium
Finish
Polished Brass
Finish Group
Brass
Fire Rating
30
Max Door Weight (kg)
80
Size (mm)
102 x 76 x 2.7
Size Range (mm)
4 Inch/100mm
Type
Ball Bearing Hinge
Use
Interior
CE Rated
Yes
Material
Mild Steel
- Fire door hinge suitable for doors up to 80kg
- 30 minute fire rating
- Medium duty - for low use public areas
- For interior use
- BS EN Grade 11
- All our fire door hinges are CE marked
- NOTE: Intumescent pads should be used to ensure adherence to fire regulations
- Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
- A budget steel fire door hinge with twin ball bearings for interior fire doors up to 80kg weight. As with all fire door hinges, hang doors on 3 hinges and use intumescent pads to meet the exact requirements for the fire door rating. For heavier doors, exterior doors and doors prone to damp such as kitchens and bathrooms, we recommend using solid stainless steel hinges.
Specification & Documentation
British Standard
Yes
BSEN Grade
11
Certifire
No
Corners
Square
Duty
Medium
Finish
Polished Brass
Finish Group
Brass
Fire Rating
30
Max Door Weight (kg)
80
Size (mm)
102 x 76 x 2.7
Size Range (mm)
4 Inch/100mm
Type
Ball Bearing Hinge
Use
Interior
CE Rated
Yes
Material
Mild Steel
- Projects doors clear of architraves, window boards or down pipes
- Light duty parliament hinge for low use lightweight doors on domestic projects
- Polished solid brass
- Suitable for doors up to 24kg
- Parliament hinges allow the door to project clear projecting architraves, window boards or down pipes
- Measurements are leaf height x inside clearance x fully open width
- Inside clearance measurement is between the wings of the parliament hinge and is the maximum projection you can achieve on lightweight doors
- For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection.
Specification & Documentation
Duty
Light
Finish
Polished Brass
Finish Group
Brass
Max Projection (mm)
52
Max Weight (kg)
24
Size Range (mm)
4 Inch/100mm
Size (mm)
100 x 52 x 100 x 4
Use
Interior
Type
Parliament
Documents
- Projects doors clear of architraves, window boards or down pipes
- Light duty parliament hinge for low use lightweight doors on domestic projects
- Polished solid brass
- Suitable for doors up to 24kg
- Parliament hinges allow the door to project clear projecting architraves, window boards or down pipes
- Measurements are leaf height x inside clearance x fully open width
- Inside clearance measurement is between the wings of the parliament hinge and is the maximum projection you can achieve on lightweight doors
- For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection.
Specification & Documentation
Duty
Light
Finish
Polished Brass
Finish Group
Brass
Max Projection (mm)
52
Max Weight (kg)
24
Size Range (mm)
4 Inch/100mm
Size (mm)
100 x 52 x 100 x 4
Use
Interior
Type
Parliament
Documents
About this product
- Hard wearing, resilient polypropylene bristle stops draughts, dust, noise etc.
- Adjusts to irregular gaps, can be used over carpets
- Suitable for domestic and industrial use
- The bristle inserts are available separately for grooving into swing doors; ideal for sealing around irregular gaps, cables or pipe work
- 22mm brush supplied as standard (16mm visible from strip) - 30mm, 40mm and 50mm brushes available to special order
- An aluminium heavy industrial use carrier with 80mm or 120mm brush heights in 3 metre lengths is also available to special order
Specification & Documentation
Application
Screw
Brush Length (mm)
22
Exitex
BRU
Finish
Gold Anodised
Finish Group
Gold
Type
Brush Seals
Length (mm)
914
Material
Aluminium
Documents
About this product
- Hard wearing, resilient polypropylene bristle stops draughts, dust, noise etc.
- Adjusts to irregular gaps, can be used over carpets
- Suitable for domestic and industrial use
- The bristle inserts are available separately for grooving into swing doors; ideal for sealing around irregular gaps, cables or pipe work
- 22mm brush supplied as standard (16mm visible from strip) - 30mm, 40mm and 50mm brushes available to special order
- An aluminium heavy industrial use carrier with 80mm or 120mm brush heights in 3 metre lengths is also available to special order
Specification & Documentation
Application
Screw
Brush Length (mm)
22
Exitex
BRU
Finish
Gold Anodised
Finish Group
Gold
Type
Brush Seals
Length (mm)
914
Material
Aluminium
Documents
About this product
- Premium Neoprene memory foam self-adhesive draught strip
- 3500mm pack size, one side and top of a typical door
- Seals gaps 2-7mm, for all hinged timber and UPVC doors and windows
- Excellent memory, returns back to its original shape after compression - ideal for variable gaps around doors and windows
Specification & Documentation
Door/Window Type
uPVC & Timber
Application
Self-Adhesive
Finish
Black
Finish Group
Black
Type
Weatherstrips
Material
Rubber
About this product
- Premium Neoprene memory foam self-adhesive draught strip
- 3500mm pack size, one side and top of a typical door
- Seals gaps 2-7mm, for all hinged timber and UPVC doors and windows
- Excellent memory, returns back to its original shape after compression - ideal for variable gaps around doors and windows
Specification & Documentation
Door/Window Type
uPVC & Timber
Application
Self-Adhesive
Finish
Black
Finish Group
Black
Type
Weatherstrips
Material
Rubber
About this product
- Seals gaps 3-6mm around windows and doors
- Ideal for large gaps
- Prevents draughts around windows, doors, loft hatches and all other areas of the home
- Self-adhesive - easy to apply
- Can be cut to size
Specification & Documentation
Application
Self-Adhesive
Finish
Brown
Finish Group
Brown
Length (m)
5
Type
Joinery Seals
Door/Window Type
uPVC & Timber
Length (mm)
5000
Material
Rubber
About this product
- Seals gaps 3-6mm around windows and doors
- Ideal for large gaps
- Prevents draughts around windows, doors, loft hatches and all other areas of the home
- Self-adhesive - easy to apply
- Can be cut to size
Specification & Documentation
Application
Self-Adhesive
Finish
Brown
Finish Group
Brown
Length (m)
5
Type
Joinery Seals
Door/Window Type
uPVC & Timber
Length (mm)
5000
Material
Rubber
This product is rated 5.0 out of 5 by other customers
Door furniture
Really quick service and the item was delivered as promised. Will definitely use your services again
Quick delivery and spot on quality at a cracking price
Bought my first order from Ironmongery Direct and was very impressed with delivery time, quality and price of items bought
About this product
- For inward or outward opening doors
- Low profile with concealed fixings
- Central rubber seal
- Easy access for light wheeled traffic
- 17mm floor to door clearance, up to 3mm tolerance
- Part-M Regulation Compliant, Wheelchair access, BS8300 &bul; Central Nitrile seal with lower seals requires no additional sealant
- Aluminium and nitrite construction BS EN-1474
About this product
- For inward or outward opening doors
- Low profile with concealed fixings
- Central rubber seal
- Easy access for light wheeled traffic
- 17mm floor to door clearance, up to 3mm tolerance
- Part-M Regulation Compliant, Wheelchair access, BS8300 &bul; Central Nitrile seal with lower seals requires no additional sealant
- Aluminium and nitrite construction BS EN-1474
Specification & Documentation
DocM
Yes
Door Opening
Inward/Outward Opening
Equality Act Compliant
Yes
Finish
Gold Anodised
Seal Gap Range
15-18mm
Size (mm)
2000 x 76 x 17
Type
Thresholds
Width (mm)
76
Length (mm)
2000
Material
Aluminium
