SKU: 773666
Simpson Strong Tie Masonry Joist Hanger for Solid Joists - 150 x 47mm
5.0
(5)
13 in stock

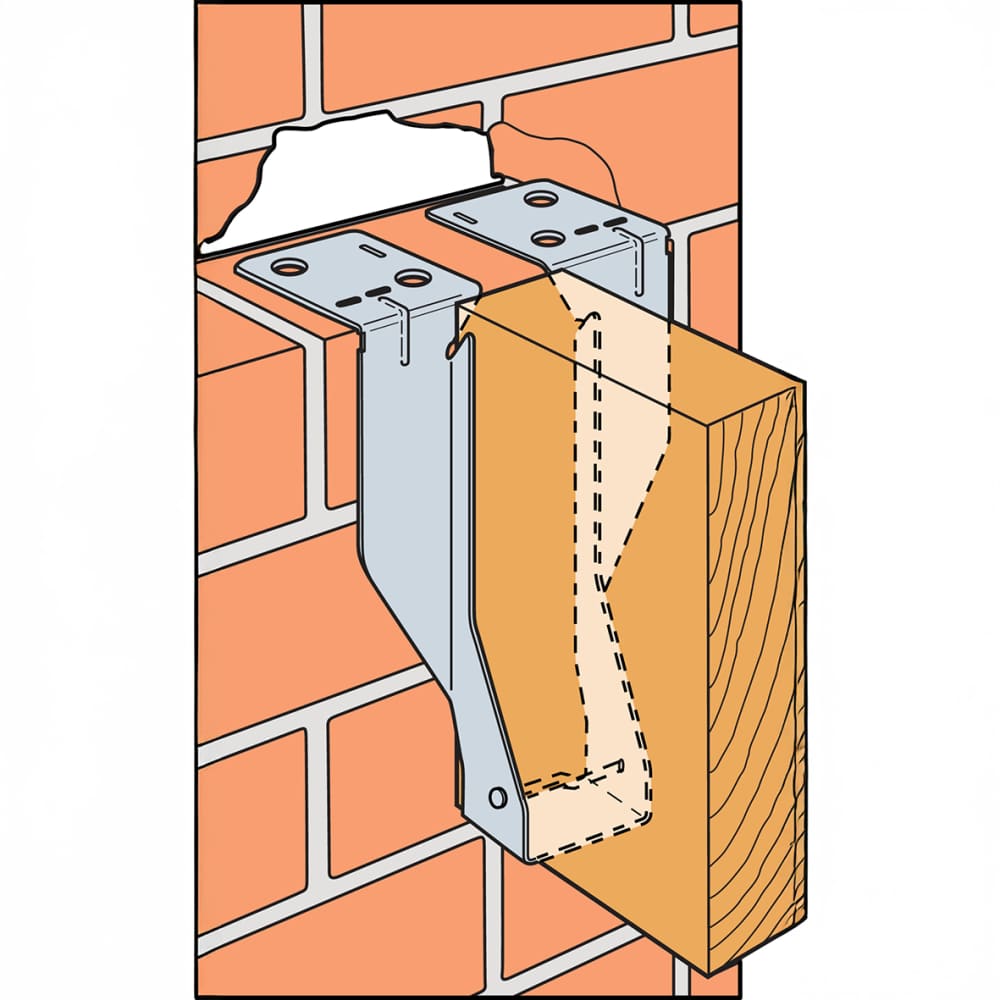

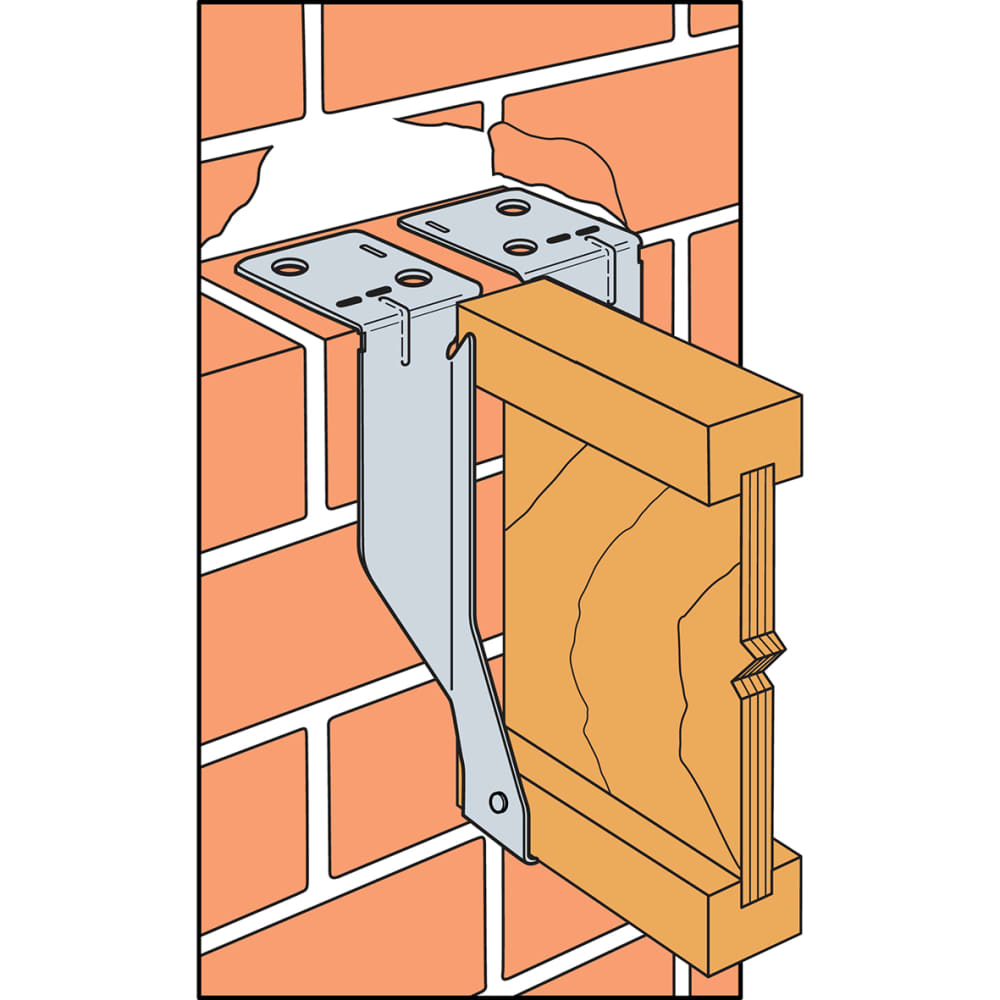

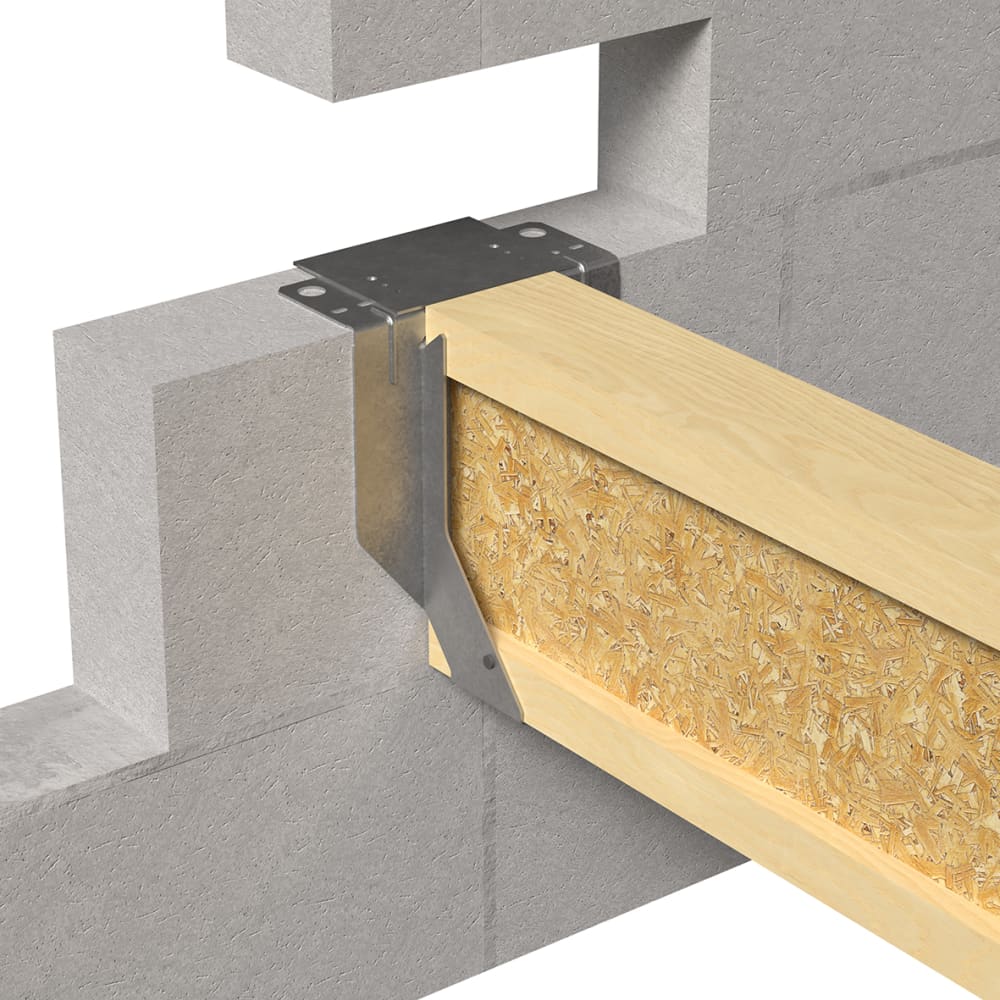

JHM masonry hangers (part code JHM150/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
£2.95
Select Size (mm)
- A galvanised joist hanger (part code JHA270/47) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
- Holes suited for a 30 x 7.5mm galvanised square twist nail
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
236.5 x 47 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
236.5
Width (mm)
47
- A galvanised joist hanger (part code JHA270/47) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
- Holes suited for a 30 x 7.5mm galvanised square twist nail
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
236.5 x 47 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
236.5
Width (mm)
47
- JHM masonry hangers (part code JHM150/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
- Built-in inspection slot at the base of the joist hanger to aid inspection from the ground
- Heavy duty masonry joist hanger for higher load carrying capacity
- Top flange provides widest area in contact with masonry support allowing superior performance
- Embossments stiffen top flange and the holes allow improved mortar keying
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Thickness (mm)
2
Type
Joist Hanger
Size (mm)
150 x 47 x 2
Material
Galvanised Steel
Option
For Solid Joists
Pack Quantity
1
Height (mm)
150
Width (mm)
47
Duty
Heavy
- JHM masonry hangers (part code JHM150/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
- Built-in inspection slot at the base of the joist hanger to aid inspection from the ground
- Heavy duty masonry joist hanger for higher load carrying capacity
- Top flange provides widest area in contact with masonry support allowing superior performance
- Embossments stiffen top flange and the holes allow improved mortar keying
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Thickness (mm)
2
Type
Joist Hanger
Size (mm)
150 x 47 x 2
Material
Galvanised Steel
Option
For Solid Joists
Pack Quantity
1
Height (mm)
150
Width (mm)
47
Duty
Heavy
About this product
- Square twist nails are ideal for use where very strong joints are required
- Ideal for all types of builders metal work
- Twisted shank gives an enhanced pull-out resistance
- Galvanised finish for medium duty rust protection
- Conforms to Eurocode 5 and service class 2 - for interior and covered exterior applications
- 2.5kg of nails per pack
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Gauge
3.75mm
Head Type
Round
Length (mm)
30
Pack Size
2.5kg
Size (mm)
3.75 x 30
Type
Exterior Nails
Material
Carbon Steel
Pack Quantity
2.5kg
Documents
About this product
- Square twist nails are ideal for use where very strong joints are required
- Ideal for all types of builders metal work
- Twisted shank gives an enhanced pull-out resistance
- Galvanised finish for medium duty rust protection
- Conforms to Eurocode 5 and service class 2 - for interior and covered exterior applications
- 2.5kg of nails per pack
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Gauge
3.75mm
Head Type
Round
Length (mm)
30
Pack Size
2.5kg
Size (mm)
3.75 x 30
Type
Exterior Nails
Material
Carbon Steel
Pack Quantity
2.5kg
Documents
About this product
- Reinforced angle brackets (part code ABR90) are suitable for structural applications in framing and wood-frame houses
- Suitable for use on solid wood, glued-laminate wood, concrete, steel and composite lumber
- Ideal for fastening small trusses, cladding plates, cladding uprights, rafter anchors and many others
- Made from electro-galvanized steel for durability
Specification & Documentation
Finish
Galvanised
Size (mm)
90 x 90 x 65
Thickness (mm)
2.5
Type
Angle Bracket
CE Rated
Yes
Material
Galvanised Steel
Option
Reinforced
Pack Quantity
1
Height (mm)
90
Width (mm)
65
About this product
- Reinforced angle brackets (part code ABR90) are suitable for structural applications in framing and wood-frame houses
- Suitable for use on solid wood, glued-laminate wood, concrete, steel and composite lumber
- Ideal for fastening small trusses, cladding plates, cladding uprights, rafter anchors and many others
- Made from electro-galvanized steel for durability
Specification & Documentation
Finish
Galvanised
Size (mm)
90 x 90 x 65
Thickness (mm)
2.5
Type
Angle Bracket
CE Rated
Yes
Material
Galvanised Steel
Option
Reinforced
Pack Quantity
1
Height (mm)
90
Width (mm)
65
About this product
- A galvanised joist hanger (part code JHA450/47) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
Finish
Galvanised
Thickness (mm)
1.5
Type
Joist Hanger
CE Rated
Yes
Size (mm)
477 x 47 x 1.5
Material
Galvanised Steel
Option
Long Leg
Pack Quantity
1
Height (mm)
477
Width (mm)
47
About this product
- A galvanised joist hanger (part code JHA450/47) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
Finish
Galvanised
Thickness (mm)
1.5
Type
Joist Hanger
CE Rated
Yes
Size (mm)
477 x 47 x 1.5
Material
Galvanised Steel
Option
Long Leg
Pack Quantity
1
Height (mm)
477
Width (mm)
47
About this product
- TCP truss clips (part code TCP47) are designed to attach girders, trusses and rafters to wall plates providing wind restraint
- Speed-prong provides temporary attachment for ease of installation
- Can be used for general purposes, to resist uplift wherever one member crosses another
- Features obround holes for easier nail driving
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Truss Clip
CE Rated
Yes
Size (mm)
100 x 47 x 0.9
Material
Galvanised Steel
Pack Quantity
1
Height (mm)
100
Width (mm)
47
About this product
- TCP truss clips (part code TCP47) are designed to attach girders, trusses and rafters to wall plates providing wind restraint
- Speed-prong provides temporary attachment for ease of installation
- Can be used for general purposes, to resist uplift wherever one member crosses another
- Features obround holes for easier nail driving
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Truss Clip
CE Rated
Yes
Size (mm)
100 x 47 x 0.9
Material
Galvanised Steel
Pack Quantity
1
Height (mm)
100
Width (mm)
47
This product is rated 5.0 out of 5 by other customers
Joist hangers
Great product you can use in all blocks and not just in joints, just cut a slot and pack with slate I use a little resin to fix.
Excellent service
Brought joist hangers for decking. Arrived quickly. Had 1 less in the box, rung them up and had the missing one delivered the next day! Great service.
About this product
- JHM masonry hangers (part code JHM150/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
- Built-in inspection slot at the base of the joist hanger to aid inspection from the ground
- Heavy duty masonry joist hanger for higher load carrying capacity
- Top flange provides widest area in contact with masonry support allowing superior performance
- Embossments stiffen top flange and the holes allow improved mortar keying
About this product
- JHM masonry hangers (part code JHM150/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
- Built-in inspection slot at the base of the joist hanger to aid inspection from the ground
- Heavy duty masonry joist hanger for higher load carrying capacity
- Top flange provides widest area in contact with masonry support allowing superior performance
- Embossments stiffen top flange and the holes allow improved mortar keying
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Thickness (mm)
2
Type
Joist Hanger
Size (mm)
150 x 47 x 2
Material
Galvanised Steel
Option
For Solid Joists
Pack Quantity
1
Height (mm)
150
Width (mm)
47
Duty
Heavy
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
V88ATH - 3 years ago
Joist hangers
Great product you can use in all blocks and not just in joints, just cut a slot and pack with slate I use a little resin to fix.
Was this review helpful?
Verified customer
Anonymous - 5 years ago
Excellent service
Brought joist hangers for decking. Arrived quickly. Had 1 less in the box, rung them up and had the missing one delivered the next day! Great service.
Was this review helpful?
Verified customer
