SKU: 147791

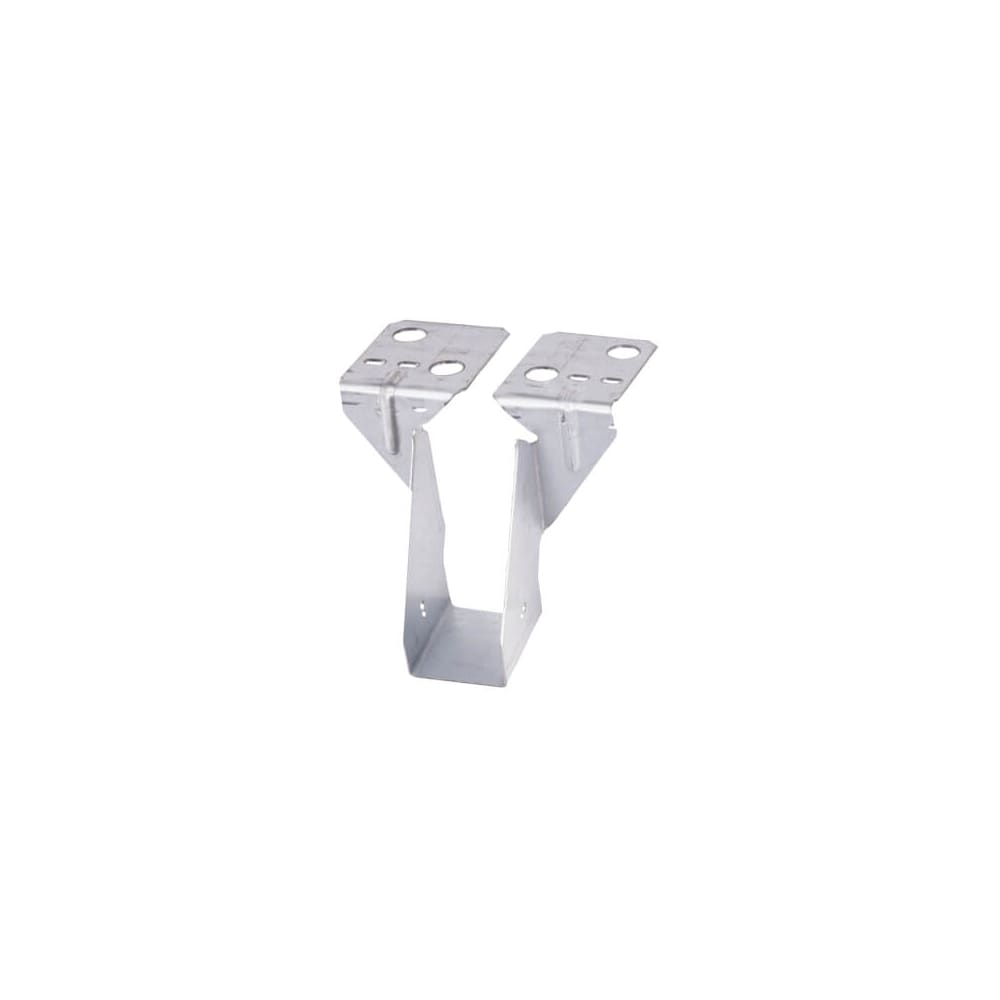

Simpson Strong Tie Masonry Joist Hanger for Solid Joists - 100 x 47mm
4.6
(19)
269 in stock
JHM masonry hangers (part code JHM100/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
Select Size (mm)
Buy in bulk & save up to 5%
About this product

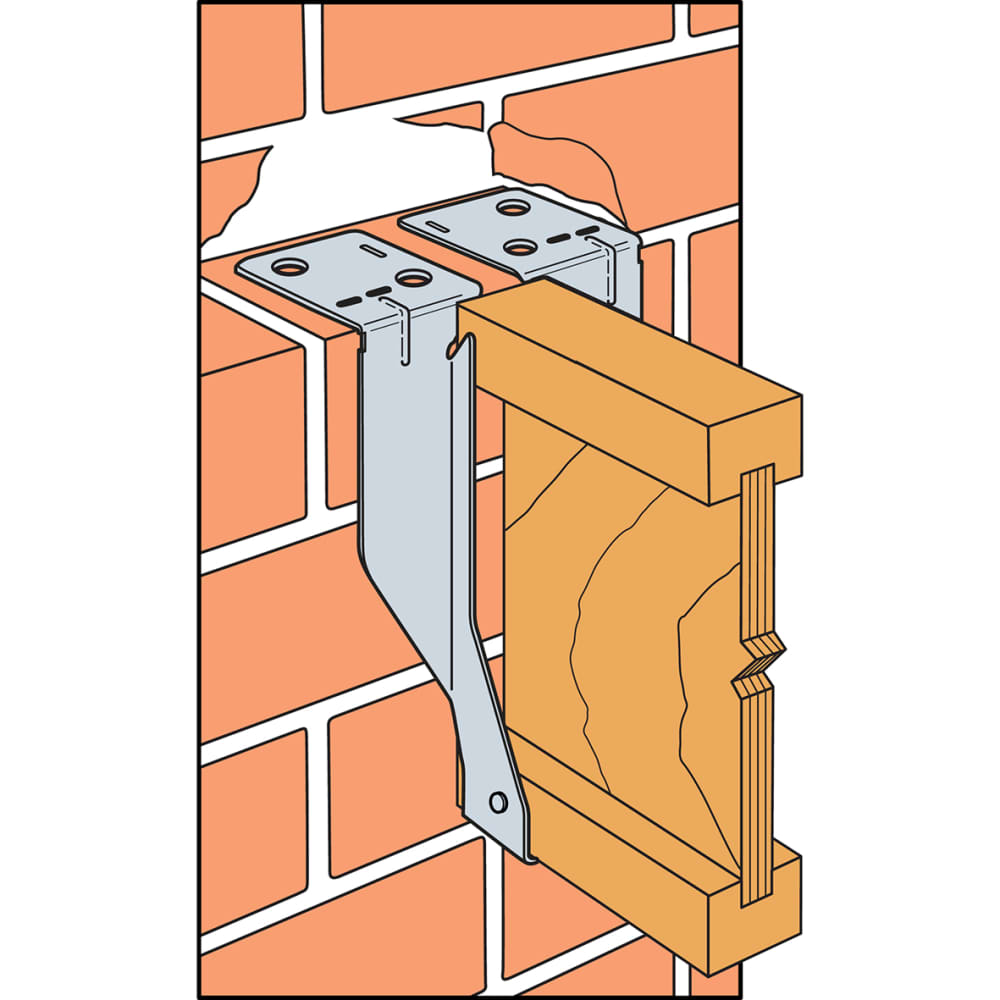

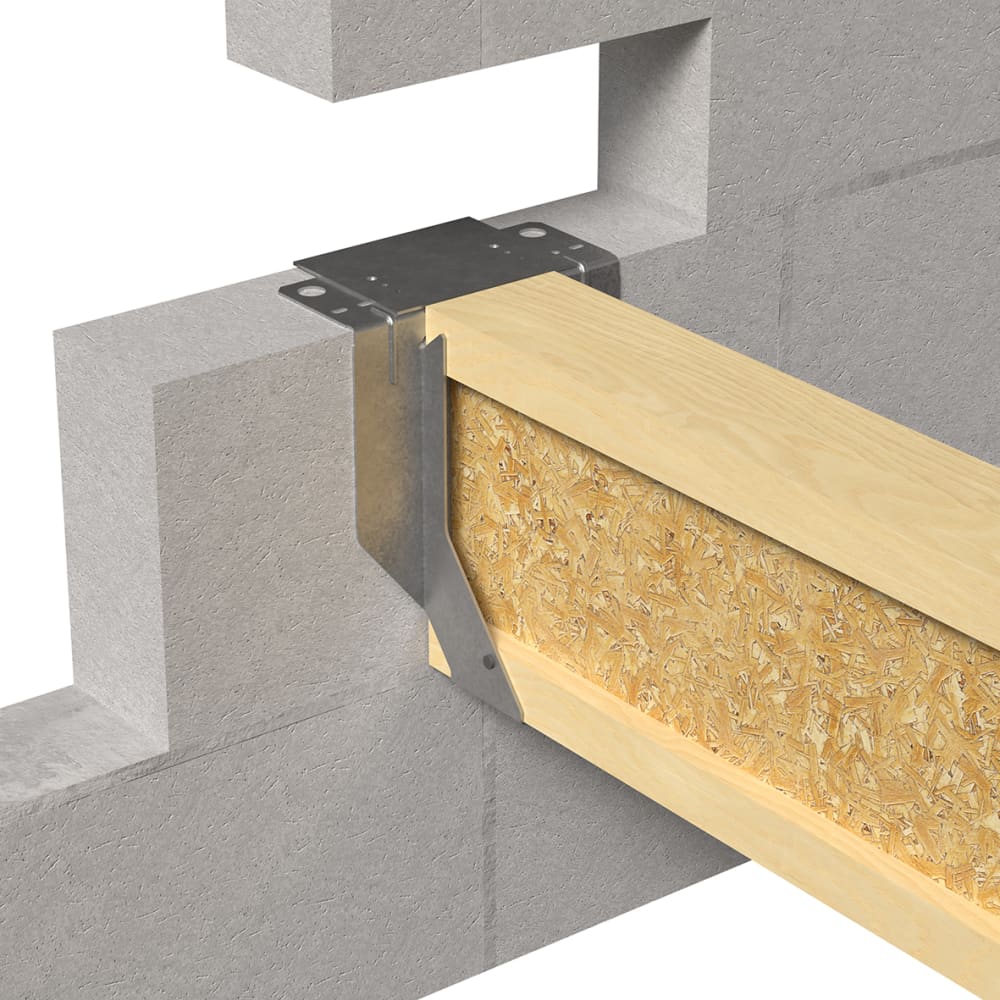

- JHM masonry hangers (part code JHM100/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls

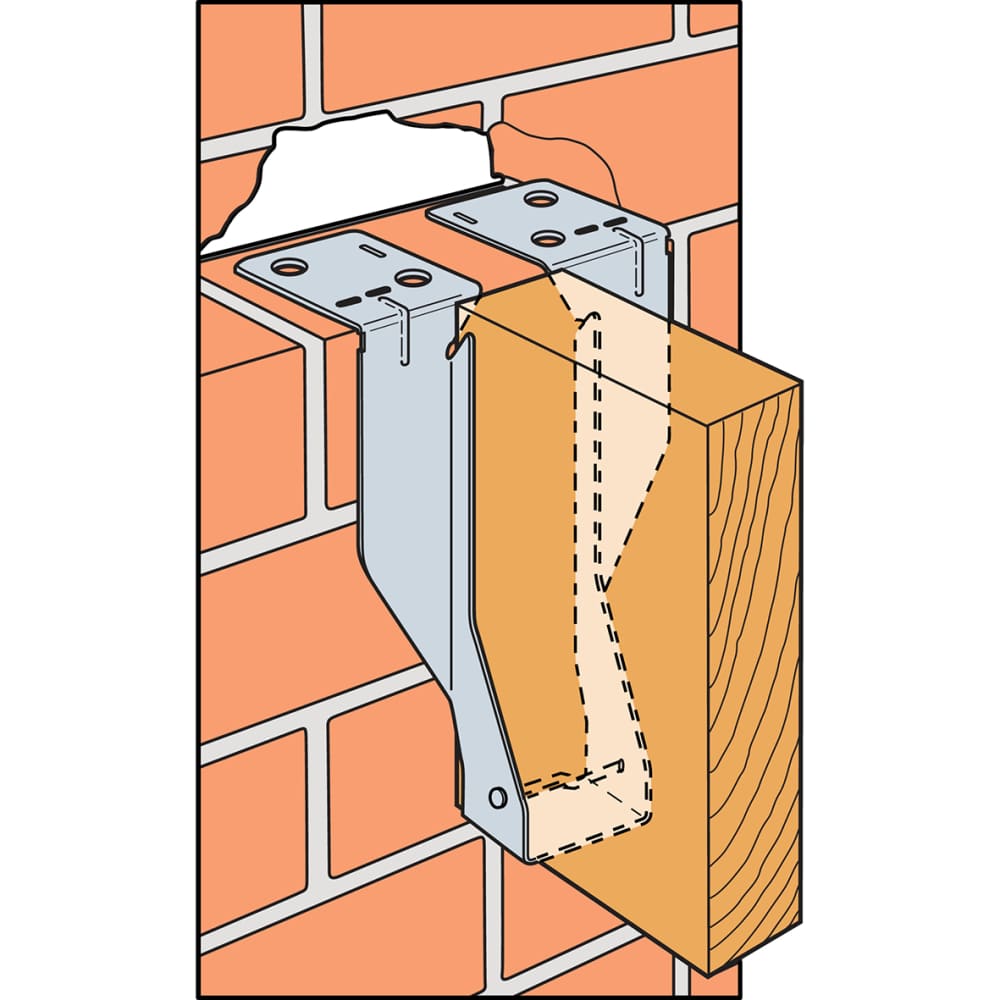

- Built-in inspection slot at the base of the joist hanger to aid inspection from the ground
- Heavy duty masonry joist hanger for higher load carrying capacity
- Top flange provides widest area in contact with masonry support allowing superior performance
- Embossments stiffen top flange and the holes allow improved mortar keying
Specification & Documentation
Finish
Galvanised
Thickness (mm)
2
Type
Joist Hanger
CE Rated
Yes
Size (mm)
100 x 47 x 2
Material
Galvanised Steel
Option
For Solid Joists
Pack Quantity
1
Height (mm)
100
Width (mm)
47
Duty
Heavy
About this product
- JHM masonry hangers (part code JHM100/47) are designed for supporting timber joists, beams and trussed rafters from masonry walls
- Built-in inspection slot at the base of the joist hanger to aid inspection from the ground
- Heavy duty masonry joist hanger for higher load carrying capacity
- Top flange provides widest area in contact with masonry support allowing superior performance
- Embossments stiffen top flange and the holes allow improved mortar keying
Specification & Documentation
Finish
Galvanised
Thickness (mm)
2
Type
Joist Hanger
CE Rated
Yes
Size (mm)
100 x 47 x 2
Material
Galvanised Steel
Option
For Solid Joists
Pack Quantity
1
Height (mm)
100
Width (mm)
47
Duty
Heavy
