SKU: 903141

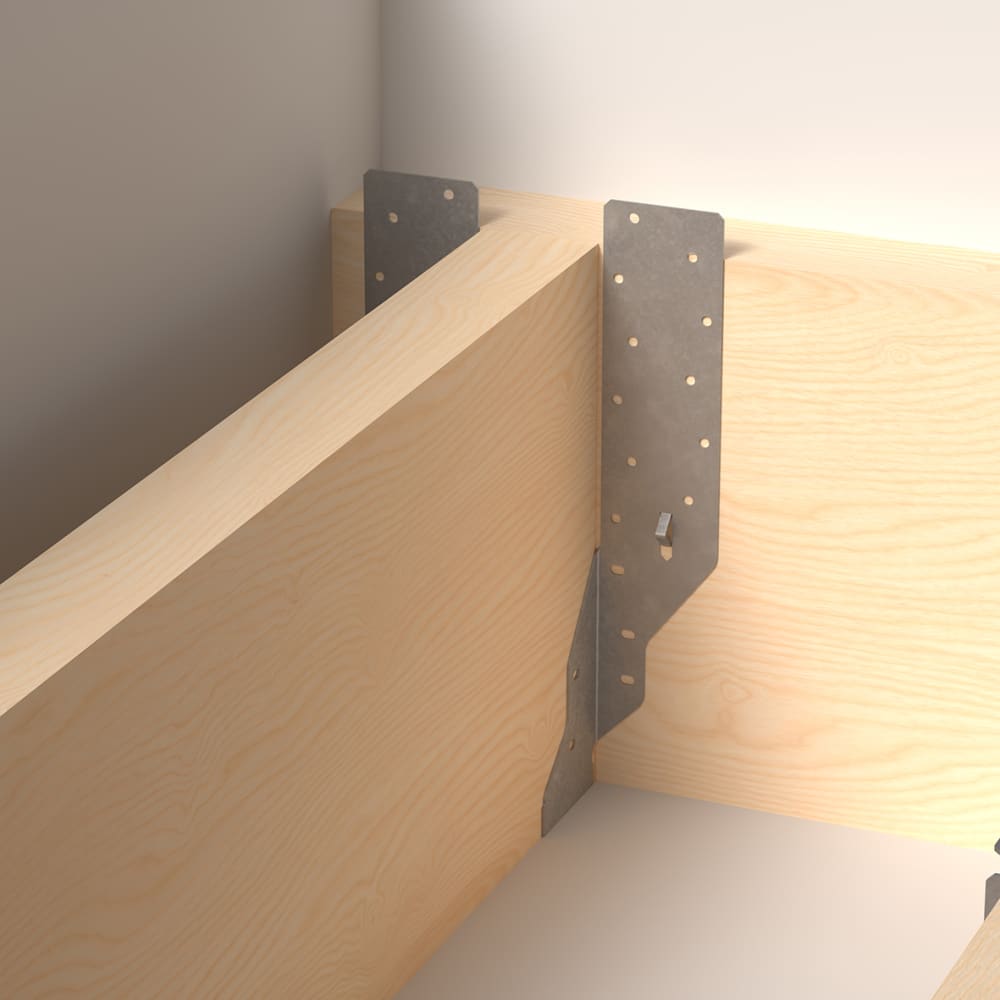

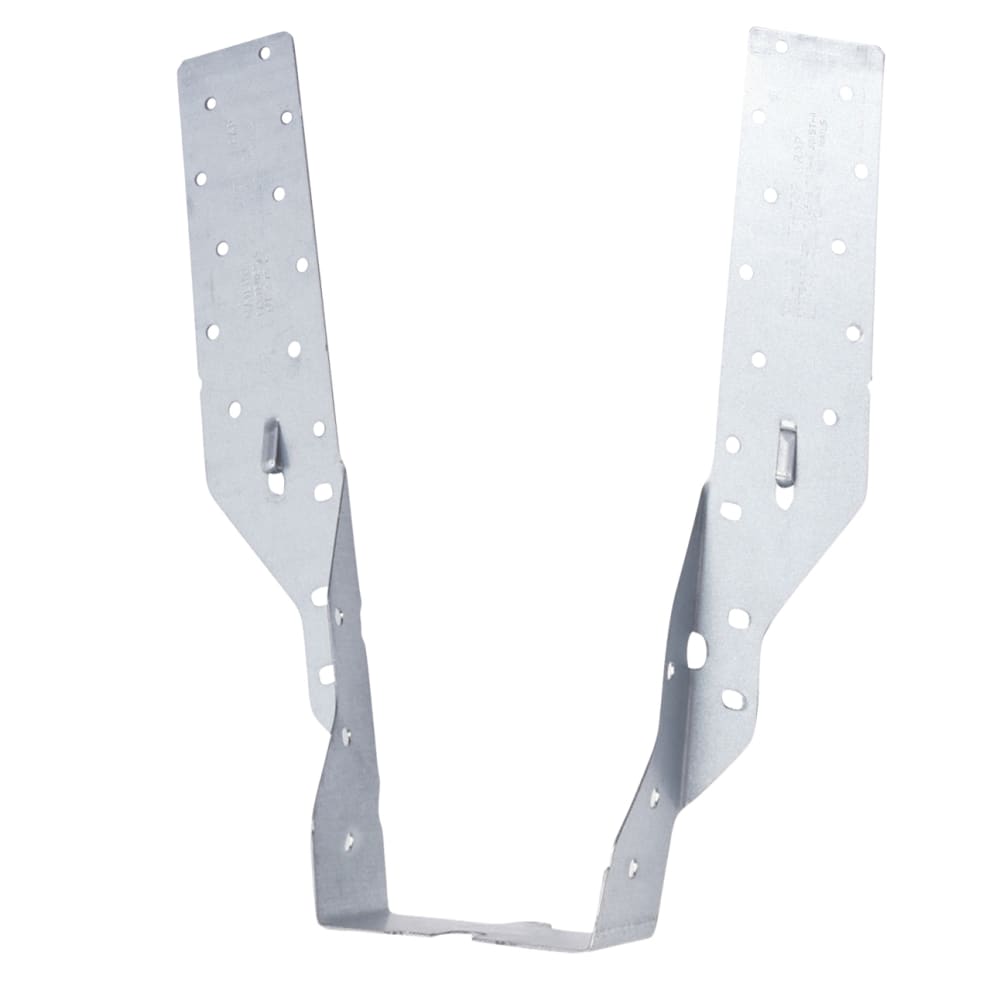

Simpson Strong Tie Joist Hanger - Adjustable Height Strap - Standard Leg - 91mm Width
4.9
(16)
14 in stock
A galvanised joist hanger (part code JHA270/91) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
Select Option
Select Size (mm)
Buy in bulk & save up to 5%
About this product

- A galvanised joist hanger (part code JHA270/47) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
- Holes suited for a 30 x 7.5mm galvanised square twist nail
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
236.5 x 47 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
236.5
Width (mm)
47
About this product

- A galvanised joist hanger (part code JHA270/47) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
- Holes suited for a 30 x 7.5mm galvanised square twist nail
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
236.5 x 47 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
236.5
Width (mm)
47
About this product

- A galvanised joist hanger (part code JHA270/91) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
234 x 91 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
234
Width (mm)
91
About this product

- A galvanised joist hanger (part code JHA270/91) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
234 x 91 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
234
Width (mm)
91
About this product

- Square twist nails are ideal for use where very strong joints are required
- Ideal for all types of builders metal work
- Twisted shank gives an enhanced pull-out resistance
- Galvanised finish for medium duty rust protection
- Conforms to Eurocode 5 and service class 2 - for interior and covered exterior applications
- 2.5kg of nails per pack
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Gauge
3.75mm
Head Type
Round
Length (mm)
30
Pack Size
2.5kg
Size (mm)
3.75 x 30
Type
Exterior Nails
Material
Carbon Steel
Pack Quantity
2.5kg
Documents

About this product

- Square twist nails are ideal for use where very strong joints are required
- Ideal for all types of builders metal work
- Twisted shank gives an enhanced pull-out resistance
- Galvanised finish for medium duty rust protection
- Conforms to Eurocode 5 and service class 2 - for interior and covered exterior applications
- 2.5kg of nails per pack
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Gauge
3.75mm
Head Type
Round
Length (mm)
30
Pack Size
2.5kg
Size (mm)
3.75 x 30
Type
Exterior Nails
Material
Carbon Steel
Pack Quantity
2.5kg
Documents

- A galvanised joist hanger (part code JHA450/137) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Thickness (mm)
1.5
Type
Joist Hanger
Size (mm)
446.5 x 137 x 1.5
Material
Galvanised Steel
Option
Long Leg
Pack Quantity
1
Height (mm)
446.5
Width (mm)
137



- A galvanised joist hanger (part code JHA450/137) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Thickness (mm)
1.5
Type
Joist Hanger
Size (mm)
446.5 x 137 x 1.5
Material
Galvanised Steel
Option
Long Leg
Pack Quantity
1
Height (mm)
446.5
Width (mm)
137

- TCP truss clips (part code TCP47) are designed to attach girders, trusses and rafters to wall plates providing wind restraint
- Speed-prong provides temporary attachment for ease of installation
- Can be used for general purposes, to resist uplift wherever one member crosses another
- Features obround holes for easier nail driving
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Truss Clip
CE Rated
Yes
Size (mm)
100 x 47 x 0.9
Material
Galvanised Steel
Pack Quantity
1
Height (mm)
100
Width (mm)
47



- TCP truss clips (part code TCP47) are designed to attach girders, trusses and rafters to wall plates providing wind restraint
- Speed-prong provides temporary attachment for ease of installation
- Can be used for general purposes, to resist uplift wherever one member crosses another
- Features obround holes for easier nail driving
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Truss Clip
CE Rated
Yes
Size (mm)
100 x 47 x 0.9
Material
Galvanised Steel
Pack Quantity
1
Height (mm)
100
Width (mm)
47
About this product

- Square twist nails are ideal for use where very strong joints are required
- Ideal for all types of builders metal work
- Twisted shank gives an enhanced pull-out resistance
- Galvanised finish for medium duty rust protection
- Conforms to Eurocode 5 and service class 2 - for interior and covered exterior applications
- 2.5kg of nails per pack
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Gauge
3.75mm
Head Type
Round
Length (mm)
40
Pack Size
2.5kg
Size (mm)
3.75 x 40
Type
Exterior Nails
Material
Carbon Steel
Pack Quantity
2.5kg
Documents

About this product

- Square twist nails are ideal for use where very strong joints are required
- Ideal for all types of builders metal work
- Twisted shank gives an enhanced pull-out resistance
- Galvanised finish for medium duty rust protection
- Conforms to Eurocode 5 and service class 2 - for interior and covered exterior applications
- 2.5kg of nails per pack
Specification & Documentation
CE Rated
Yes
Finish
Galvanised
Gauge
3.75mm
Head Type
Round
Length (mm)
40
Pack Size
2.5kg
Size (mm)
3.75 x 40
Type
Exterior Nails
Material
Carbon Steel
Pack Quantity
2.5kg
Documents
About this product

- A galvanised joist hanger (part code JHA270/91) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
About this product

- A galvanised joist hanger (part code JHA270/91) featuring a speed-prong to hold the hanger in position allowing easier attachment - no more holding the hanger, joist and nail in one hand while swinging a hammer with the other!
- Incorporates a location tab allowing easy alignment of the joist hanger to the timber
- Minimum and maximum nailing schedules are stamped into the strap ensuring the correct fitting of the joist hanger
- This joist hanger features a wider strap providing more surface area on the supporting timber and allowing increased nail spacing
- Can be used for face fix or wrap over
- Manufactured from pre-galvanised mild steel
Specification & Documentation
Finish
Galvanised
Thickness (mm)
0.9
Type
Joist Hanger
CE Rated
Yes
Size (mm)
234 x 91 x 0.9
Material
Galvanised Steel
Option
Standard Leg
Pack Quantity
1
Height (mm)
234
Width (mm)
91
