SKU: 645679
Simonswerk Tectus TE540 3D FR Door Hinge - 200 x 32mm - Stainless Steel Effect - Pair
5.0
(1)
2 in stock
Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
Select Finish
Select Size (mm)
Buy in bulk & save up to 5%
About this product
- Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
- Opening angle up to 180 degrees and contains maintenance free bearings
- Max door weight 120kg
- Intumescent already integrated in to hinge body
- 3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1mm Compression
- NOTE: Cannot be used with perko concealed closers
- 10 year guarantee
About this product
- Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
- Opening angle up to 180 degrees and contains maintenance free bearings
- Max door weight 120kg
- Intumescent already integrated in to hinge body
- 3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1mm Compression
- NOTE: Cannot be used with perko concealed closers
- 10 year guarantee
Specification & Documentation
Duty
Heavy
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fire Rating
30
Max Weight (kg)
120

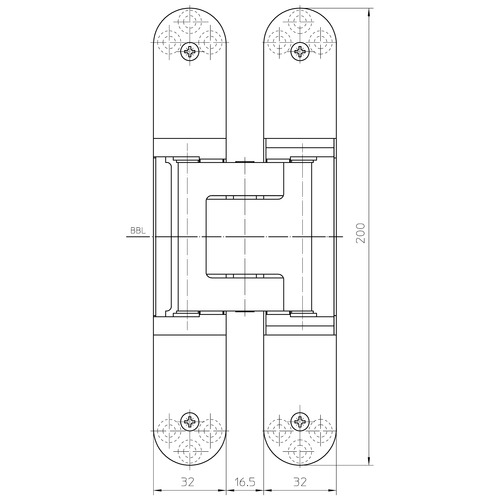

Size (mm)
200 x 32
Size Range (mm)
8 Inch/200mm
Type
Concealed Hinge
Use
Interior & Exterior
CE Rated
Yes
Length (mm)
200
Material
Mild Steel
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Joe Joiner - 6 years ago
Great concealed hinges
Having used this type of hinge for a number of years I was pleasantly surprised that they did a fire rated version. They are very robust and the 3D adjustment is very easy to use. My only problem with them is the price as I would like to use them more often but a lot of my customers would not want to spend as much on hinges!
