SKU: 454030

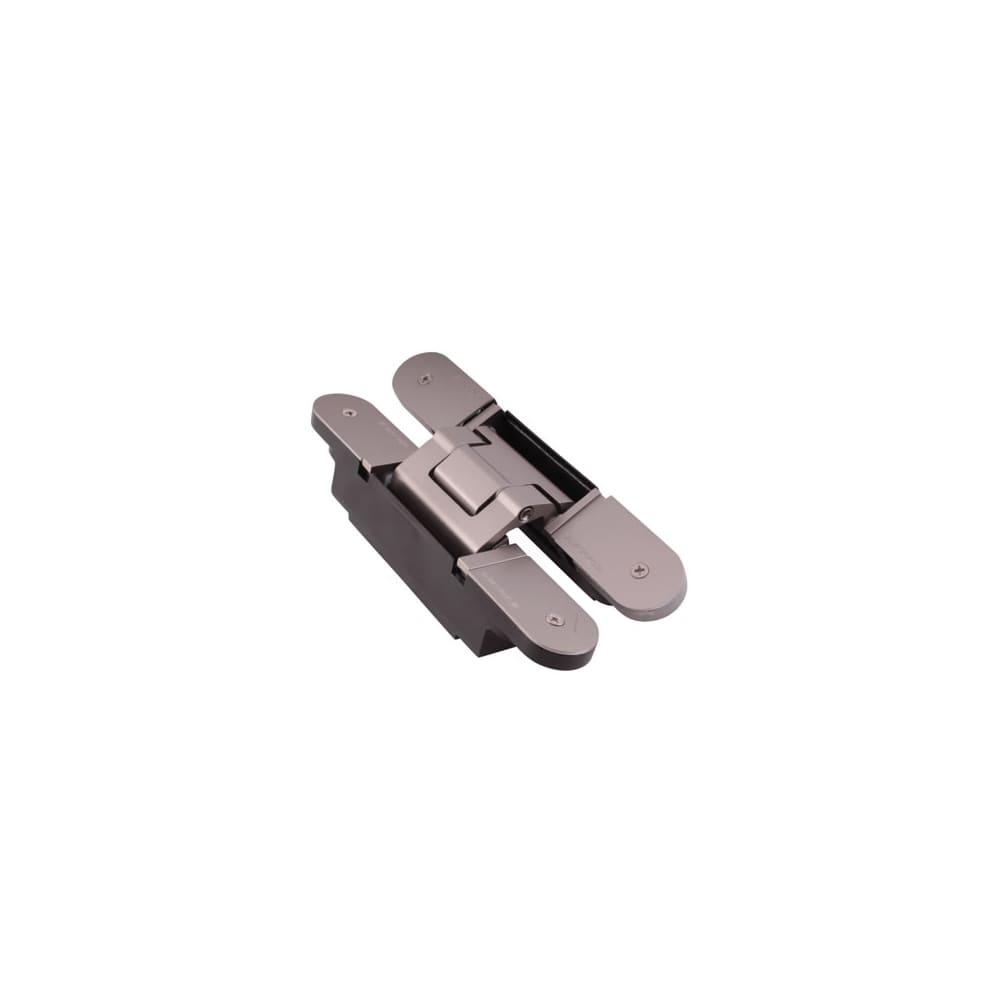

Simonswerk Tectus TE340 3D FR Door Hinge - 160 x 28mm - Stainless Steel Effect - Pair
0.0
(0)
6 in stock
Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
£194.51pair+ VAT
VAT
Select Finish
Select
Select Size (mm)
Select
Buy in bulk & save up to 5%
Free returns within 28 days
About this product
- Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
- Opening angle up to 180 degrees and contains maintenance free bearings
- Max door weight 80kg
- Intumescent already integrated in to hinge body
- 3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1mm Compression
- NOTE: Cannot be used with perko concealed closers
- 10 year guarantee
About this product
- Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
- Opening angle up to 180 degrees and contains maintenance free bearings
- Max door weight 80kg
- Intumescent already integrated in to hinge body
- 3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1mm Compression
- NOTE: Cannot be used with perko concealed closers
- 10 year guarantee
Specification & Documentation
CE Rated
Yes
Duty
Heavy
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fire Rating
30
Max Weight (kg)
80
Size Range (mm)
6 Inch/150mm

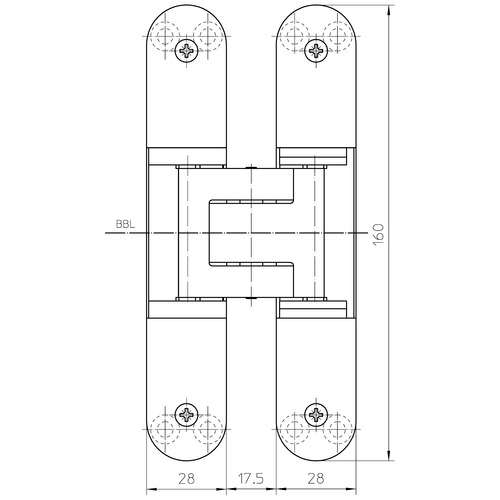

Size (mm)
160 x 28
Type
Concealed Hinge
Use
Interior & Exterior
Length (mm)
160
Material
Mild Steel
