SKU: 308427

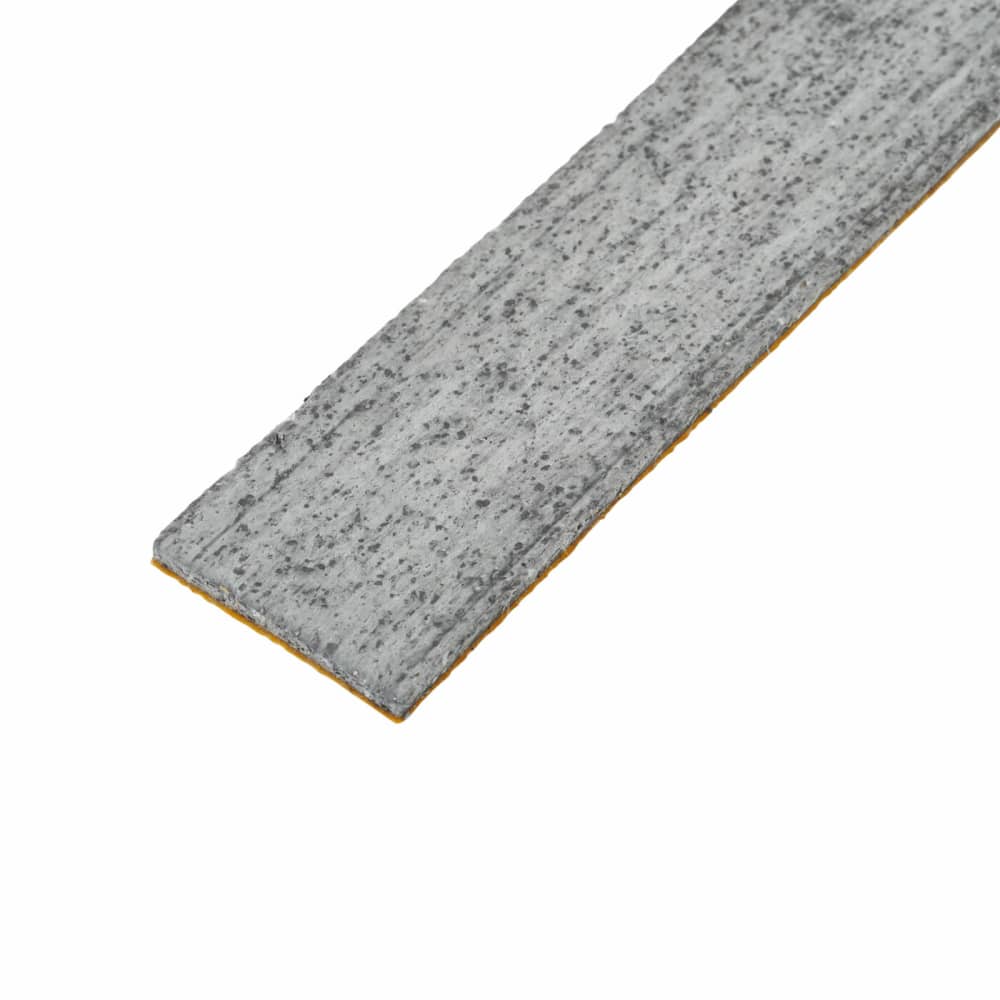

Sealmaster Intumescent Fireglaze Tape FD60 Door Kit - 2100m Length - Grey
4.3
(3)
8 in stock
A universal medium pressure intumescent glazing tape for dry glazing systems
£26.50each+ VAT
VAT
Buy in bulk & save up to 4%
Free returns within 28 days
Frequently bought together
Current item
Main Product
£26.50
Each + VAT
Buy in bulk & save up to 4%
5+
£25.40
Save 4%
Added
Details
Product code: 308427
£26.50
Each + VAT
Buy in bulk & save up to 4%
5+
£25.40
Save 4%
About this product
- A universal medium pressure intumescent glazing tape for dry glazing systems
- Suitable for both door & screen fire resistant applications
- Excellent high temperature sealing
- Excellent thermal stability with volume expansion beginning at 180°C
- Unique chemical formulation means product retains char stability to 1000°C
- Expands to 10 times original volume
- Strong adhesive backing allows rapid & easy installation in both fire door apertures & fire glazing screens
- Can be easily cut for glazing beads & other precision dependant applications
- Resistant to atmospheric moisture & carbon dioxide
- Can be used as a glazing liner so no need for additional products
- Used for a broad range of fire resistant glazing for integrity, semi-insulating & insulation properties
- Tested to BS 476: Pt 22
- Contains:
- 2 x 2100mm x 25mm
- 1 x 2100mm x 54mm
Specification & Documentation
Colour
Black
Fire Rating
60
Length (m)
2.1
Option
Tape
Size (mm)
25 x 2.5 & 54 x 2.5
Type
Glazing Seal
Length (mm)
2100
Material
Graphite
