SKU: 770187

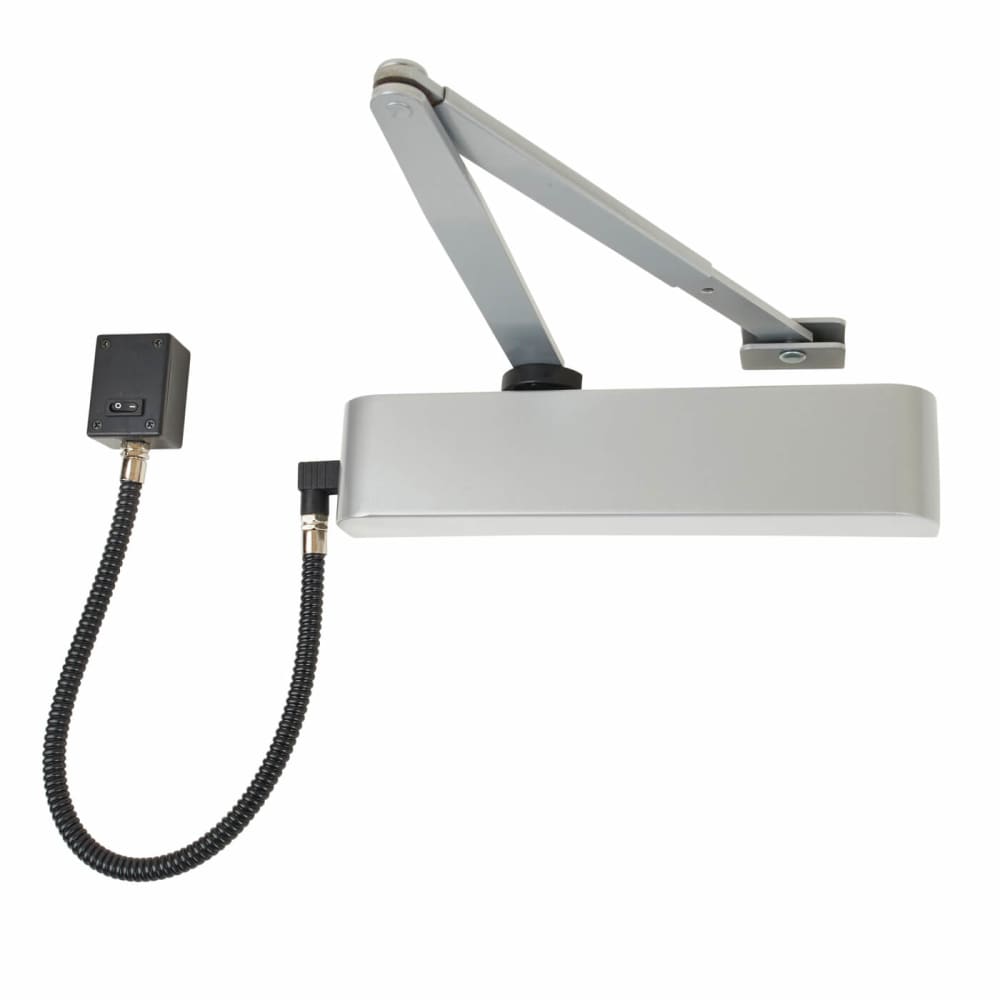

Exidor 9870 Electromagnetic Fire Door Closer - Power Size 4 - Silver
4.3
(3)
29 in stock
Controlled closure of the door in the event of a fire alarm or power failure
About this product
- Controlled closure of the door in the event of a fire alarm or power failure
- Power Size 4
- Interior doors up to 1100mm or 80kg Max
- Cam action
- Free swing function
- Electromagnetic hold open
- Hold open possible between 65° and 180°
- Input voltage 24VDC
- Dual handed and universal fixing pack for push or pull side mounting
Specification & Documentation
Arm Finish
Silver
Backcheck
No
CE Rated
Yes
Certifire
Yes
Cover Finish
Silver
Equality Act Compliant
Yes
Fire Rating
120
Free Swing
Yes
Hold Open Function
Yes
Max Door Weight (kg)
80
Max Door Width (mm)
1100
Option
Universal Fixing Pack Included
Power Size
EN 4
Range
9870
Material
Aluminium
About this product
- Controlled closure of the door in the event of a fire alarm or power failure
- Power Size 4
- Interior doors up to 1100mm or 80kg Max
- Cam action
- Free swing function
- Electromagnetic hold open
- Hold open possible between 65° and 180°
- Input voltage 24VDC
- Dual handed and universal fixing pack for push or pull side mounting
Specification & Documentation
Arm Finish
Silver
Backcheck
No
CE Rated
Yes
Certifire
Yes
Cover Finish
Silver
Equality Act Compliant
Yes
Fire Rating
120
Free Swing
Yes
Hold Open Function
Yes
Max Door Weight (kg)
80
Max Door Width (mm)
1100
Option
Universal Fixing Pack Included
Power Size
EN 4
Range
9870
Material
Aluminium
- Multipoint lock that's suitable for uPVC and timber doors
- Split spindle function for nightlatch operation - means the door cannot be opened from outside without a key
- 3 locking points
- Top Bolt: 570mm
- Bottom Bolt: 662mm
- Length: 2250mm
- 16mm faceplate
- Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Specification & Documentation
Application
uPVC/Timber
Backset (mm)
35
Bottom Bolt 1 (mm)
662
Cam (mm)
12
Centres (mm)
92
Faceplate (mm)
16
Keeps Included
Yes
Locking Points
3
Option
Euro Profile
Secured by Design
No
Spindle
Split
Top Bolt 1 (mm)
570
Type
Lock
Deadbolt
1
Hook Bolt
2
Length (mm)
2250
British Standard
No
CE Rated
No
PAS 24
Yes
Material
Zinc
- Multipoint lock that's suitable for uPVC and timber doors
- Split spindle function for nightlatch operation - means the door cannot be opened from outside without a key
- 3 locking points
- Top Bolt: 570mm
- Bottom Bolt: 662mm
- Length: 2250mm
- 16mm faceplate
- Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Specification & Documentation
Application
uPVC/Timber
Backset (mm)
35
Bottom Bolt 1 (mm)
662
Cam (mm)
12
Centres (mm)
92
Faceplate (mm)
16
Keeps Included
Yes
Locking Points
3
Option
Euro Profile
Secured by Design
No
Spindle
Split
Top Bolt 1 (mm)
570
Type
Lock
Deadbolt
1
Hook Bolt
2
Length (mm)
2250
British Standard
No
CE Rated
No
PAS 24
Yes
Material
Zinc
About this product
- Screen printed for durability
- Complete with countersunk screw holes and supplied with screws
Specification & Documentation
Diameter (mm)
75
Finish
Satin Stainless Steel
Material
201 Stainless Steel
Pack Size
1
Size (mm)
75 x 1
Thickness (mm)
1
Option
Standard
Type
Fire Door Keep Shut
About this product
- Screen printed for durability
- Complete with countersunk screw holes and supplied with screws
Specification & Documentation
Diameter (mm)
75
Finish
Satin Stainless Steel
Material
201 Stainless Steel
Pack Size
1
Size (mm)
75 x 1
Thickness (mm)
1
Option
Standard
Type
Fire Door Keep Shut
- For use on interior doors - offices, store rooms
- Light duty
- Off door code change
- Supplied with a 60mm backset latchbolt
- Testing: BS EN 1634-1. For use on 30 minute timber fire doors (Only if installed with intumescent pack. Sold separately)
- Suits 33-55mm thick doors
- 8000 individual codes
- Code length: 4
- Reversible handing
- Holdback function
- No code free function or key override
- All mechanical code locks use non-sequential codes, which means the 4-digit code can be entered in any order - e.g. 1234 can be 4321 or 1342. This is a lower security option than electronic locks but makes them ideal for smaller businesses or premises looking for the convenience and security of access control on a smaller budget
- For Intumescent to suit, search AR195 Intumescent
Specification & Documentation
Backset (mm)
60
Code Change
Off Door
Code Free Function
No
Code Length
4
Door Thickness (mm)
33-55
Finish
Satin Chrome
Hand
Reversible
Hold Back Function
Yes
Individual Codes
8000
Option
Knob
Type
Mechanical Code Lock
Use
Interior
Key Override
No
Material
Solid Brass
Model
AR195
Fire Rating
30
Documents
- For use on interior doors - offices, store rooms
- Light duty
- Off door code change
- Supplied with a 60mm backset latchbolt
- Testing: BS EN 1634-1. For use on 30 minute timber fire doors (Only if installed with intumescent pack. Sold separately)
- Suits 33-55mm thick doors
- 8000 individual codes
- Code length: 4
- Reversible handing
- Holdback function
- No code free function or key override
- All mechanical code locks use non-sequential codes, which means the 4-digit code can be entered in any order - e.g. 1234 can be 4321 or 1342. This is a lower security option than electronic locks but makes them ideal for smaller businesses or premises looking for the convenience and security of access control on a smaller budget
- For Intumescent to suit, search AR195 Intumescent
Specification & Documentation
Backset (mm)
60
Code Change
Off Door
Code Free Function
No
Code Length
4
Door Thickness (mm)
33-55
Finish
Satin Chrome
Hand
Reversible
Hold Back Function
Yes
Individual Codes
8000
Option
Knob
Type
Mechanical Code Lock
Use
Interior
Key Override
No
Material
Solid Brass
Model
AR195
Fire Rating
30
Documents
About this product
- Practical finger plate for interior doors from the affordable Touchpoint range
- Manufactured from aluminium, making it lightweight but durable
- Screw fixed with adhesive tape backing which helps keep the fingerplate perfectly flat when fitted
- Radius corners
Specification & Documentation
Depth (mm)
1.5
Finish
Satin Aluminium
Finish Group
Aluminium
Fixing
Screw Fix
Fixing Holes
4
Length (mm)
300
Material
Aluminium
Option
Plain
Type
Finger Plate
Width (mm)
75
Thickness (mm)
1.5
About this product
- Practical finger plate for interior doors from the affordable Touchpoint range
- Manufactured from aluminium, making it lightweight but durable
- Screw fixed with adhesive tape backing which helps keep the fingerplate perfectly flat when fitted
- Radius corners
Specification & Documentation
Depth (mm)
1.5
Finish
Satin Aluminium
Finish Group
Aluminium
Fixing
Screw Fix
Fixing Holes
4
Length (mm)
300
Material
Aluminium
Option
Plain
Type
Finger Plate
Width (mm)
75
Thickness (mm)
1.5
About this product
- The Yale Kitemarked Euro Profile cylinder has been developed to provide resistance against common cylinder attack methods
- Tested to the British Standard BS EN1303:2005 the cylinder is suitable as a replacement product on UPVC, wood and composite doors that require a high level of security and attack protection
- The cylinder is Kitemark and Secured by Design approved
- Anti-Bump, Anti-Pick, Anti-screw and Anti-Drill protection lock
- 6 pin Yale cylinder
- TS007:2011 1 star to comply with the latest standards
- Supplied with 3 keys
- 10 year guarantee
Specification & Documentation
A
90
Anti Bump
Yes
Anti Drill
Yes
Anti Pick
Yes
B
45
British Standard
Yes
C
45
CE Rated
No
Finish
Polished Nickel
Keying Option
Keyed To Differ
Length (mm)
90
Option
Thumbturn
Secured by Design
Yes
Security Level
6 Pin 1 Star
Split Size (mm)
45 [Turn] 45
Type
Euro Profile
Fire Rating
60
Finish Group
Nickel
UKCA Approved
No
About this product
- The Yale Kitemarked Euro Profile cylinder has been developed to provide resistance against common cylinder attack methods
- Tested to the British Standard BS EN1303:2005 the cylinder is suitable as a replacement product on UPVC, wood and composite doors that require a high level of security and attack protection
- The cylinder is Kitemark and Secured by Design approved
- Anti-Bump, Anti-Pick, Anti-screw and Anti-Drill protection lock
- 6 pin Yale cylinder
- TS007:2011 1 star to comply with the latest standards
- Supplied with 3 keys
- 10 year guarantee
Specification & Documentation
A
90
Anti Bump
Yes
Anti Drill
Yes
Anti Pick
Yes
B
45
British Standard
Yes
C
45
CE Rated
No
Finish
Polished Nickel
Keying Option
Keyed To Differ
Length (mm)
90
Option
Thumbturn
Secured by Design
Yes
Security Level
6 Pin 1 Star
Split Size (mm)
45 [Turn] 45
Type
Euro Profile
Fire Rating
60
Finish Group
Nickel
UKCA Approved
No
About this product
- Controlled closure of the door in the event of a fire alarm or power failure
- Power Size 4
- Interior doors up to 1100mm or 80kg Max
- Cam action
- Free swing function
- Electromagnetic hold open
- Hold open possible between 65° and 180°
- Input voltage 24VDC
- Dual handed and universal fixing pack for push or pull side mounting
About this product
- Controlled closure of the door in the event of a fire alarm or power failure
- Power Size 4
- Interior doors up to 1100mm or 80kg Max
- Cam action
- Free swing function
- Electromagnetic hold open
- Hold open possible between 65° and 180°
- Input voltage 24VDC
- Dual handed and universal fixing pack for push or pull side mounting
Specification & Documentation
Arm Finish
Silver
Backcheck
No
CE Rated
Yes
Certifire
Yes
Cover Finish
Silver
Equality Act Compliant
Yes
Fire Rating
120
Free Swing
Yes
Hold Open Function
Yes
Max Door Weight (kg)
80
Max Door Width (mm)
1100
Option
Universal Fixing Pack Included
Power Size
EN 4
Range
9870
Material
Aluminium
