SKU: 269133
Eclisse Syntesis Single Door Kit - 100mm Finished Wall Thickness - 826 x 2040mm Door Size
0.0
(0)
9 in stock
Our best selling kit for minimalistic appearance - no architraves needed
This item carries a £4.95 large item surcharge - x1 surcharge per order!
- Our best selling kit for minimalistic appearance - no architraves needed
- Suitable for doors thickness between 35 and 44mm
- Maximum door weight 100kg
- Strong steel framework
- Fits standard UK door sizes
- No need for jambs or architraves
- Finished wall thickness of 100mm when fitted with 12.5mm plasterboard
- Quick assembly and installation
- Includes anti-warp profiles for timber doors
- Extractable track for any future improvements/changes
Specification & Documentation

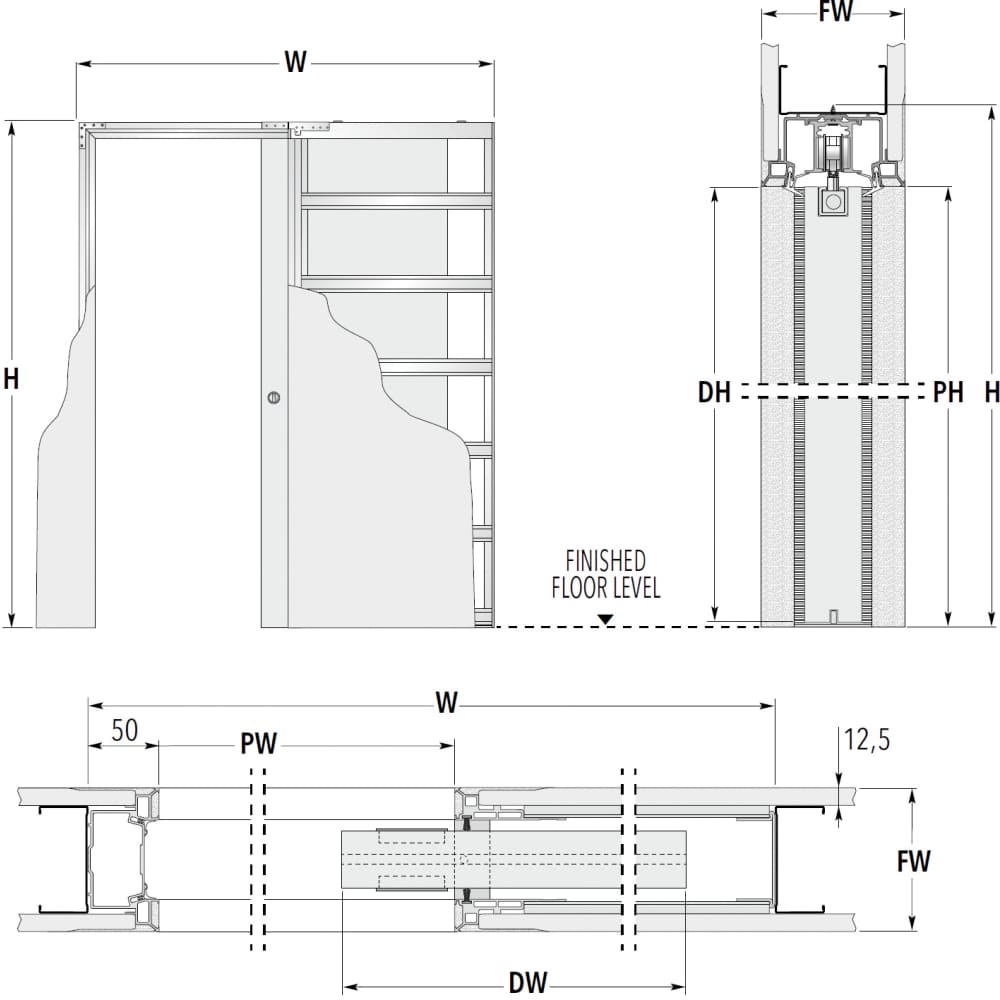

Door Panel Size W x H (mm)
826 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Max Door Weight (kg)
100
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1800 x 2108
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Pack Quantity
1
- Our best selling kit for minimalistic appearance - no architraves needed
- Suitable for doors thickness between 35 and 44mm
- Maximum door weight 100kg
- Strong steel framework
- Fits standard UK door sizes
- No need for jambs or architraves
- Finished wall thickness of 100mm when fitted with 12.5mm plasterboard
- Quick assembly and installation
- Includes anti-warp profiles for timber doors
- Extractable track for any future improvements/changes
Specification & Documentation
Door Panel Size W x H (mm)
826 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Max Door Weight (kg)
100
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1800 x 2108
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Pack Quantity
1
- This push-to-open touch latch enables a pocket door to sit completely flush inside the pocket and removes the need for a finger pull to be fitted to the leading edge of the door
- A gentle press to the leading edge of the door activates the touch latch system and pushes the door towards you enabling you to get hold of the flush pulls
- This product also means you do not need to leave part of the door protruding from the pocket so that you can get purchase on the flush pulls - the push to open mechanism will push the door out for you
- Please see the video (within product images) to see exactly how this item works
Specification & Documentation
- This push-to-open touch latch enables a pocket door to sit completely flush inside the pocket and removes the need for a finger pull to be fitted to the leading edge of the door
- A gentle press to the leading edge of the door activates the touch latch system and pushes the door towards you enabling you to get hold of the flush pulls
- This product also means you do not need to leave part of the door protruding from the pocket so that you can get purchase on the flush pulls - the push to open mechanism will push the door out for you
- Please see the video (within product images) to see exactly how this item works
Specification & Documentation
About this product
- Our best selling kit for minimalistic appearance - no architraves needed
- Suitable for doors thickness between 35 and 44mm
- Maximum door weight 100kg
- Strong steel framework
- Fits standard UK door sizes
- No need for jambs or architraves
- Finished wall thickness of 100mm when fitted with 12.5mm plasterboard
- Quick assembly and installation
- Includes anti-warp profiles for timber doors
- Extractable track for any future improvements/changes
Specification & Documentation
Door Panel Size W x H (mm)
726 x 2040
Finished Wall Thickness (mm)
100
Max Door Weight (kg)
100
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1600 x 2108
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Pack Quantity
1
About this product
- Our best selling kit for minimalistic appearance - no architraves needed
- Suitable for doors thickness between 35 and 44mm
- Maximum door weight 100kg
- Strong steel framework
- Fits standard UK door sizes
- No need for jambs or architraves
- Finished wall thickness of 100mm when fitted with 12.5mm plasterboard
- Quick assembly and installation
- Includes anti-warp profiles for timber doors
- Extractable track for any future improvements/changes
Specification & Documentation
Door Panel Size W x H (mm)
726 x 2040
Finished Wall Thickness (mm)
100
Max Door Weight (kg)
100
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1600 x 2108
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Pack Quantity
1
- Pozi countersunk wood screw designed to give rapid installation into softwoods or masonry with a plastic plug
- Partially threaded - screws with a length of 1" and under are fully threaded
- Double countersunk reduced the likelihood of head shear and assists completion of countersinking
- Twin threads for fast insertion and greater pull out resistance
- Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
- 60° twin threads with parallel shank to enable the screw to be driven twice as fast and straighter than ordinary screws
- 25° sharp point and single lead for a fast start and improved thread acceptance
- CE approved
Specification & Documentation
Bit Size
PZ3
Finish
Zinc Plated
Gauge
12.0mm
Head Type
Pozi
Pack Quantity
200
Size (Inches)
12 x 3
CE Rated
Yes
Type
Countersunk
Range
Imperial
Material
Carbon Steel
Documents
- Pozi countersunk wood screw designed to give rapid installation into softwoods or masonry with a plastic plug
- Partially threaded - screws with a length of 1" and under are fully threaded
- Double countersunk reduced the likelihood of head shear and assists completion of countersinking
- Twin threads for fast insertion and greater pull out resistance
- Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
- 60° twin threads with parallel shank to enable the screw to be driven twice as fast and straighter than ordinary screws
- 25° sharp point and single lead for a fast start and improved thread acceptance
- CE approved
Specification & Documentation
Bit Size
PZ3
Finish
Zinc Plated
Gauge
12.0mm
Head Type
Pozi
Pack Quantity
200
Size (Inches)
12 x 3
CE Rated
Yes
Type
Countersunk
Range
Imperial
Material
Carbon Steel
Documents
About this product
- Our best selling kit for minimalistic appearance - no architraves needed
- Suitable for doors thickness between 35 and 44mm
- Maximum door weight 100kg
- Strong steel framework
- Fits standard UK door sizes
- No need for jambs or architraves
- Finished wall thickness of 100mm when fitted with 12.5mm plasterboard
- Quick assembly and installation
- Includes anti-warp profiles for timber doors
- Extractable track for any future improvements/changes
About this product
- Our best selling kit for minimalistic appearance - no architraves needed
- Suitable for doors thickness between 35 and 44mm
- Maximum door weight 100kg
- Strong steel framework
- Fits standard UK door sizes
- No need for jambs or architraves
- Finished wall thickness of 100mm when fitted with 12.5mm plasterboard
- Quick assembly and installation
- Includes anti-warp profiles for timber doors
- Extractable track for any future improvements/changes
Specification & Documentation
Door Panel Size W x H (mm)
826 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Max Door Weight (kg)
100
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1800 x 2108
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Pack Quantity
1
