SKU: 172650
ECLISSE Single Fire Pocket Door Kit - FD30 - 100mm Finished Wall Thickness - 826 x 2040mm Door Size
5.0
(1)
29 in stock
The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
£569.00set+ VAT
VAT
Large Item
This item carries a £4.95 large item surcharge - x1 surcharge per order!
Free returns within 28 days
Frequently bought together
Current item
Main Product
£569.00
Each + VAT
View bulk savings
1-9
£569.00
10+
£569.00
20+
£569.00
Added
Details
Product code: 172650
£569.00
Each + VAT
View bulk savings
1-9
£569.00
10+
£569.00
20+
£569.00
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use

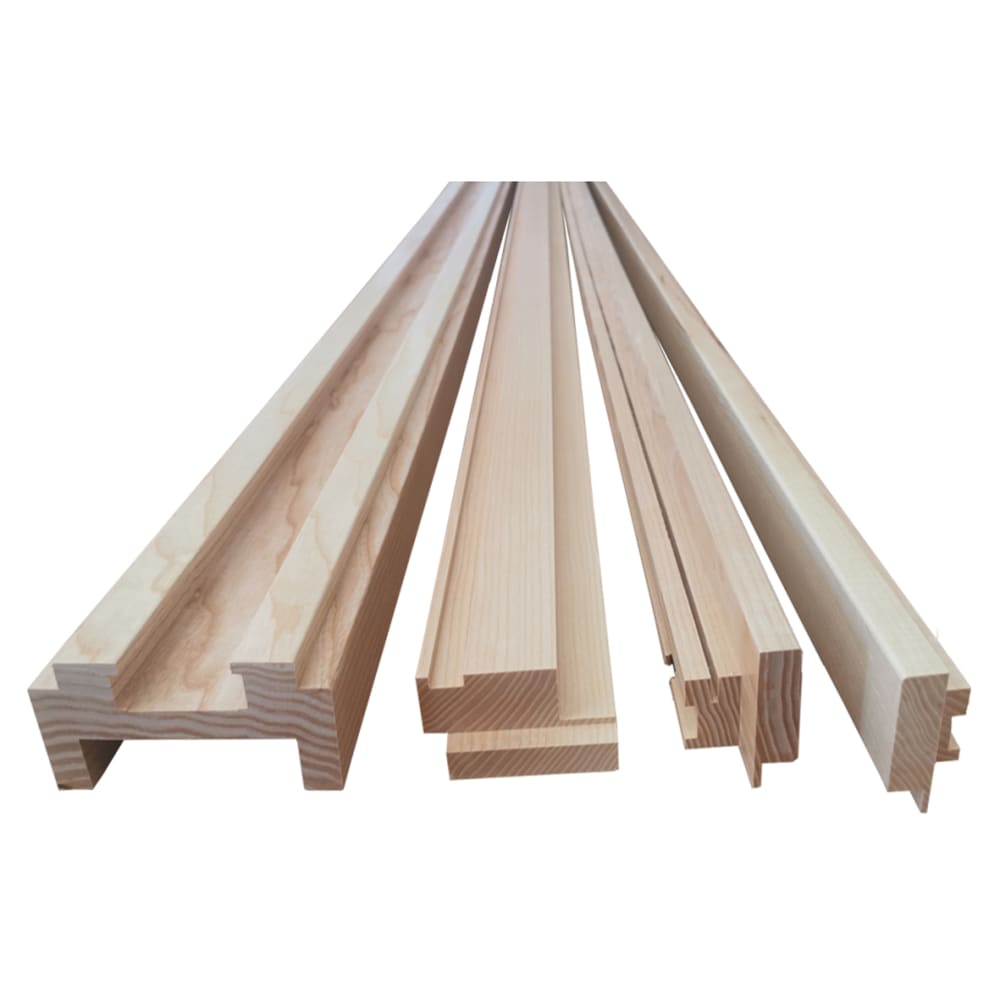

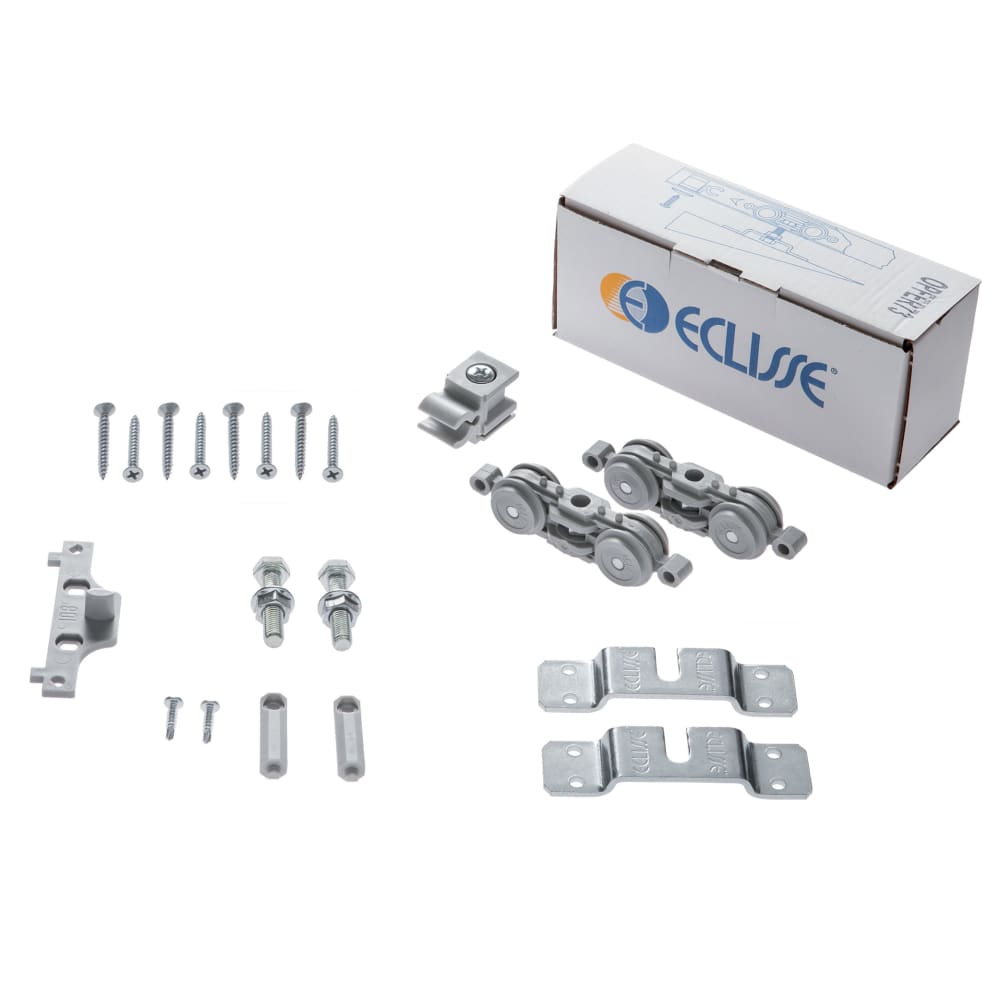

- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee

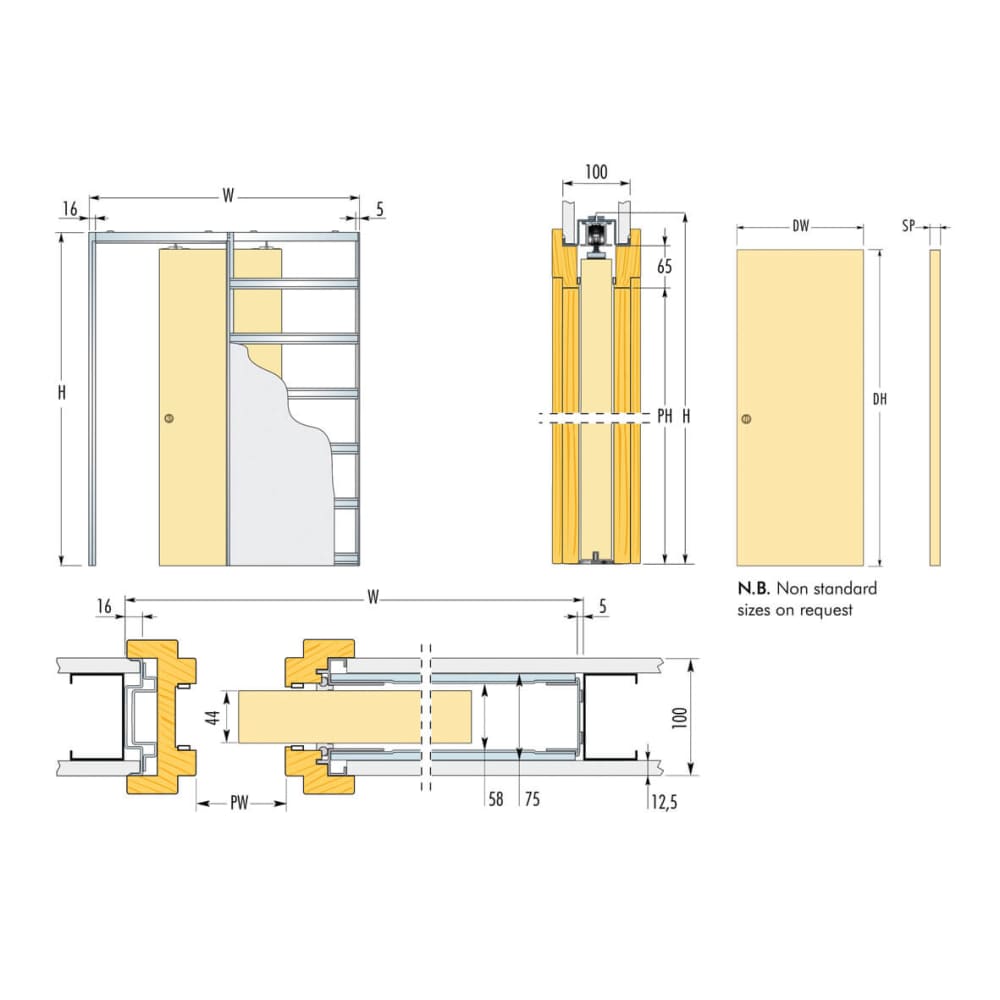

Specification & Documentation
Door Panel Size W x H (mm)
826 x 2040
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
778 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1694 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Update
Details
Previous Product
Next Product
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
Specification & Documentation
Door Panel Size W x H (mm)
826 x 2040
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
778 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1694 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Additional products
£97.95
Each + VAT
View bulk savings
1-9
£97.95
10+
£97.95
20+
£97.95
Added
Details
Product code: 289700
£97.95
Each + VAT
View bulk savings
1-9
£97.95
10+
£97.95
20+
£97.95
About this product
- A wire pulley system ensures a smooth and quiet operation, low maintenance, and high corrosion resistance
- A universal fit that applies to all ECLISSE single door sizes, max door weight 40kg
- Enables automatic self closing of the door to prevent the spread of fire, so it is also a perfect fit for single pocket Fire doors
Specification & Documentation
Max Door Weight (kg)
40
Type
Self/Soft Close
Material
Mild Steel
Pack Quantity
1
Update
Details
Previous Product
Next Product
About this product
- A wire pulley system ensures a smooth and quiet operation, low maintenance, and high corrosion resistance
- A universal fit that applies to all ECLISSE single door sizes, max door weight 40kg
- Enables automatic self closing of the door to prevent the spread of fire, so it is also a perfect fit for single pocket Fire doors
Specification & Documentation
Max Door Weight (kg)
40
Type
Self/Soft Close
Material
Mild Steel
Pack Quantity
1
£259.00
Each + VAT
View bulk savings
1-9
£259.00
10+
£259.00
20+
£259.00
Added
Details
Product code: 478684
£259.00
Each + VAT
View bulk savings
1-9
£259.00
10+
£259.00
20+
£259.00
About this product
- Space-saving solution for utilities, bathrooms, en-suites, in fact anywhere you wish to maximise usable floor space
- Exceptional quality, strength and durability
- The kit assembles into a galvanised steel frame with full pocket, track and metal door post for installation as a complete unit
- Smooth, quiet runners tested to 100,000 open and close cycles
- Extractable track for any future improvements or changes
- Use 12.5mm plasterboard to achieve a FINISHED wall thickness of 125mm
- Quick and easy to assemble, see our product video for a demonstration of assembly
- Alternatively click below for fitting instructions
- Please ensure the correct selection of Door Panel size as frames CANNOT be amended
- Suitable for doors thicknesses of between 35 and 44mm
- Maximum door weight 100kg
- Kit comes complete with full timber lining kit i.e. jamb kit, dust brushes, recessed door posts and rubber bumpers for a professional finish
- 15 year guarantee
- Order ECLISSE Soft Close Mechanism separately - search for 'ECLISSE soft close mechanism 40kg'
- ECLISSE Anti-Slam Bi-Directional Soft Close also available separately - search for 'ECLISSE bi-directional'
Specification & Documentation
Door Panel Size W x H (mm)
726 x 2040
Finished Wall Thickness (mm)
125
Max Door Weight (kg)
100
Max Passage Size W x H (mm)
700 x 2030
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1494 x 2115
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Documents
Update
Details
Previous Product
Next Product
About this product
- Space-saving solution for utilities, bathrooms, en-suites, in fact anywhere you wish to maximise usable floor space
- Exceptional quality, strength and durability
- The kit assembles into a galvanised steel frame with full pocket, track and metal door post for installation as a complete unit
- Smooth, quiet runners tested to 100,000 open and close cycles
- Extractable track for any future improvements or changes
- Use 12.5mm plasterboard to achieve a FINISHED wall thickness of 125mm
- Quick and easy to assemble, see our product video for a demonstration of assembly
- Alternatively click below for fitting instructions
- Please ensure the correct selection of Door Panel size as frames CANNOT be amended
- Suitable for doors thicknesses of between 35 and 44mm
- Maximum door weight 100kg
- Kit comes complete with full timber lining kit i.e. jamb kit, dust brushes, recessed door posts and rubber bumpers for a professional finish
- 15 year guarantee
- Order ECLISSE Soft Close Mechanism separately - search for 'ECLISSE soft close mechanism 40kg'
- ECLISSE Anti-Slam Bi-Directional Soft Close also available separately - search for 'ECLISSE bi-directional'
Specification & Documentation
Door Panel Size W x H (mm)
726 x 2040
Finished Wall Thickness (mm)
125
Max Door Weight (kg)
100
Max Passage Size W x H (mm)
700 x 2030
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1494 x 2115
Suit Door Thickness (mm)
35-44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Documents
£17.50
Each + VAT
View bulk savings
1-9
£17.50
10+
£17.50
20+
£17.50
Add
Details
Product code: 220165
£17.50
Each + VAT
View bulk savings
1-9
£17.50
10+
£17.50
20+
£17.50
About this product
- 30 minute fire rated
- The 15mm width is the popular choice or doorset manufacturers who prefer the size due to its 'belts and braces' way of getting through fire tests
- The leading brand fire resisting doors are fitted with the 15mm size, one strip for 30 minute doors and 2 strips running parallel, but approx 6mm apart, plus one brush and one plain where smoke seals are required around the door to achieve FD60 status
- Additionally, factory doorset manufacturers use this size as it has enabled them to use one size cutter for either FD30 or FD60 doors, albeit set up differently
- Fully tested to BS 476 Pt 20:22
- Independently tested on a range of single and double leaf doorsets
- Ideal for humid environments
- High tack self adhesive backing for quick and easy fitting
Specification & Documentation
Application
Fire Only
Certifire
Yes
Colour
White
Fire Rating
30
Pack Quantity
10
Size (mm)
15 x 4
Type
Plain
Length (mm)
2100
Material
Polyvinyl Chloride
Documents
Add
Previous Product
Next Product
About this product
- 30 minute fire rated
- The 15mm width is the popular choice or doorset manufacturers who prefer the size due to its 'belts and braces' way of getting through fire tests
- The leading brand fire resisting doors are fitted with the 15mm size, one strip for 30 minute doors and 2 strips running parallel, but approx 6mm apart, plus one brush and one plain where smoke seals are required around the door to achieve FD60 status
- Additionally, factory doorset manufacturers use this size as it has enabled them to use one size cutter for either FD30 or FD60 doors, albeit set up differently
- Fully tested to BS 476 Pt 20:22
- Independently tested on a range of single and double leaf doorsets
- Ideal for humid environments
- High tack self adhesive backing for quick and easy fitting
Specification & Documentation
Application
Fire Only
Certifire
Yes
Colour
White
Fire Rating
30
Pack Quantity
10
Size (mm)
15 x 4
Type
Plain
Length (mm)
2100
Material
Polyvinyl Chloride
Documents
£569.00
Each + VAT
View bulk savings
1-9
£569.00
10+
£569.00
20+
£569.00
Add
Details
Product code: 985145
£569.00
Each + VAT
View bulk savings
1-9
£569.00
10+
£569.00
20+
£569.00
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
Specification & Documentation
Door Panel Size W x H (mm)
926 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
878 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1894 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Add
Previous Product
Next Product
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
Specification & Documentation
Door Panel Size W x H (mm)
926 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
878 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1894 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
£23.50
Each + VAT
View bulk savings
1-9
£23.50
10+
£23.50
20+
£23.50
Add
Details
Product code: 973915
£23.50
Each + VAT
View bulk savings
1-9
£23.50
10+
£23.50
20+
£23.50
About this product
- A high quality range of privacy flush handles including a lock, designed to keep your doors locked with an emergency coin release on the outside Ideal for bathrooms & en-suites
- Contains: 2 x 63mm diameter flush handles & 1 x 30mm finger pull
- Suitable for 35-50mm door thickness
- 10 year guarantee
Specification & Documentation
Finish
Satin Nickel
Option
Round
Size (mm)
63
Suit Door Thickness (mm)
35-50
Type
Privacy Set with Bolt
Finish Group
Nickel
Material
Zinc
Add
Previous Product
Next Product
About this product
- A high quality range of privacy flush handles including a lock, designed to keep your doors locked with an emergency coin release on the outside Ideal for bathrooms & en-suites
- Contains: 2 x 63mm diameter flush handles & 1 x 30mm finger pull
- Suitable for 35-50mm door thickness
- 10 year guarantee
Specification & Documentation
Finish
Satin Nickel
Option
Round
Size (mm)
63
Suit Door Thickness (mm)
35-50
Type
Privacy Set with Bolt
Finish Group
Nickel
Material
Zinc
Price Summary
Main Product Price
£569
Add-on(s) Selected 2
£356.95
£259.00 (1)
Edit
£569.00 (1)
Edit
ADD PRODUCT
Total price
£925.95
+ VAT
Items you've added
3
(Excludes items already in bag)
Add 3 Item(s) to Your Basket
About this product

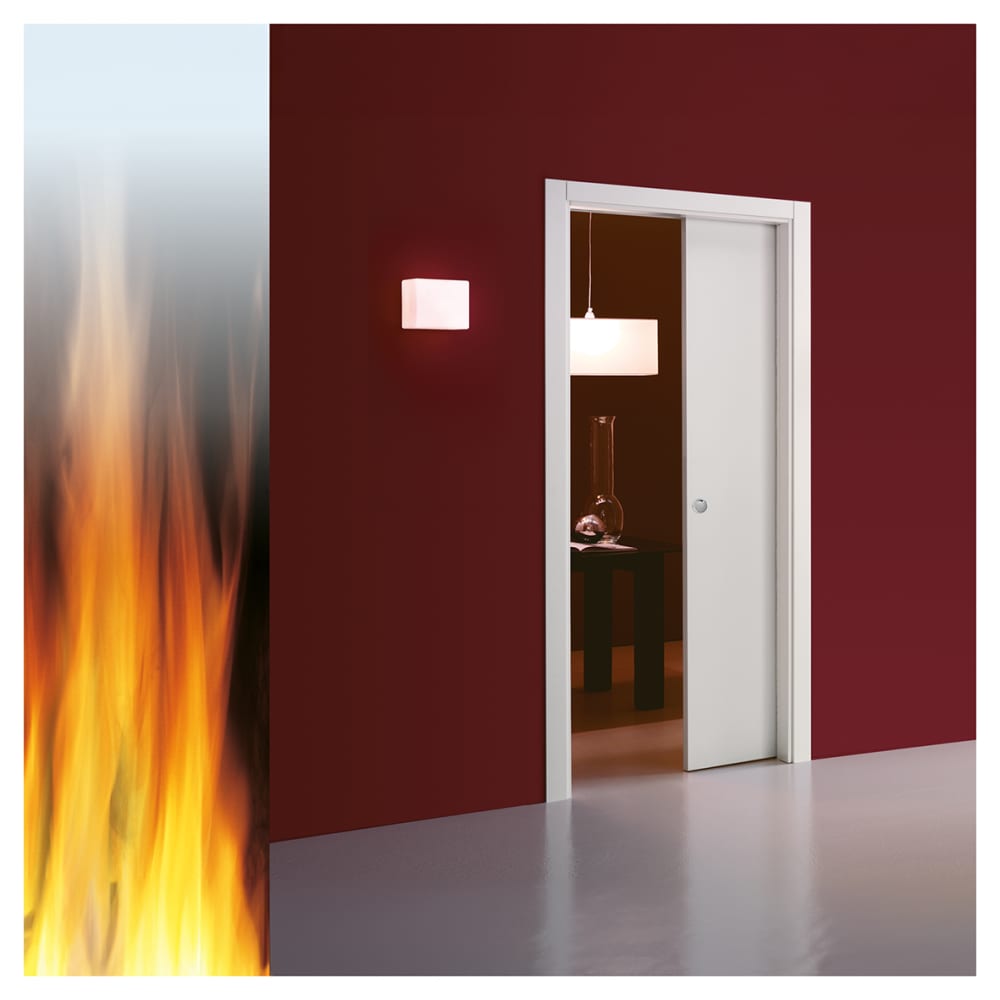

- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
Specification & Documentation
Door Panel Size W x H (mm)
826 x 2040
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
778 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1694 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Krzysztof Gniewek - 6 years ago
Great product
Easy to install , good instruction and quick delivery
Was this review helpful?
Verified customer
Page 1 of 1
Overall:
Quality of Product:
Value of Product:
51
40
30
20
10
Questions
No Questions
Free returns within 28 days
