SKU: 491801
ECLISSE Single Fire Pocket Door Kit - FD30 - 100mm Finished Wall Thickness - 1026 x 2040mm Door Size
5.0
(2)
24 in stock
The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
This item carries a £4.95 large item surcharge - x1 surcharge per order!
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use

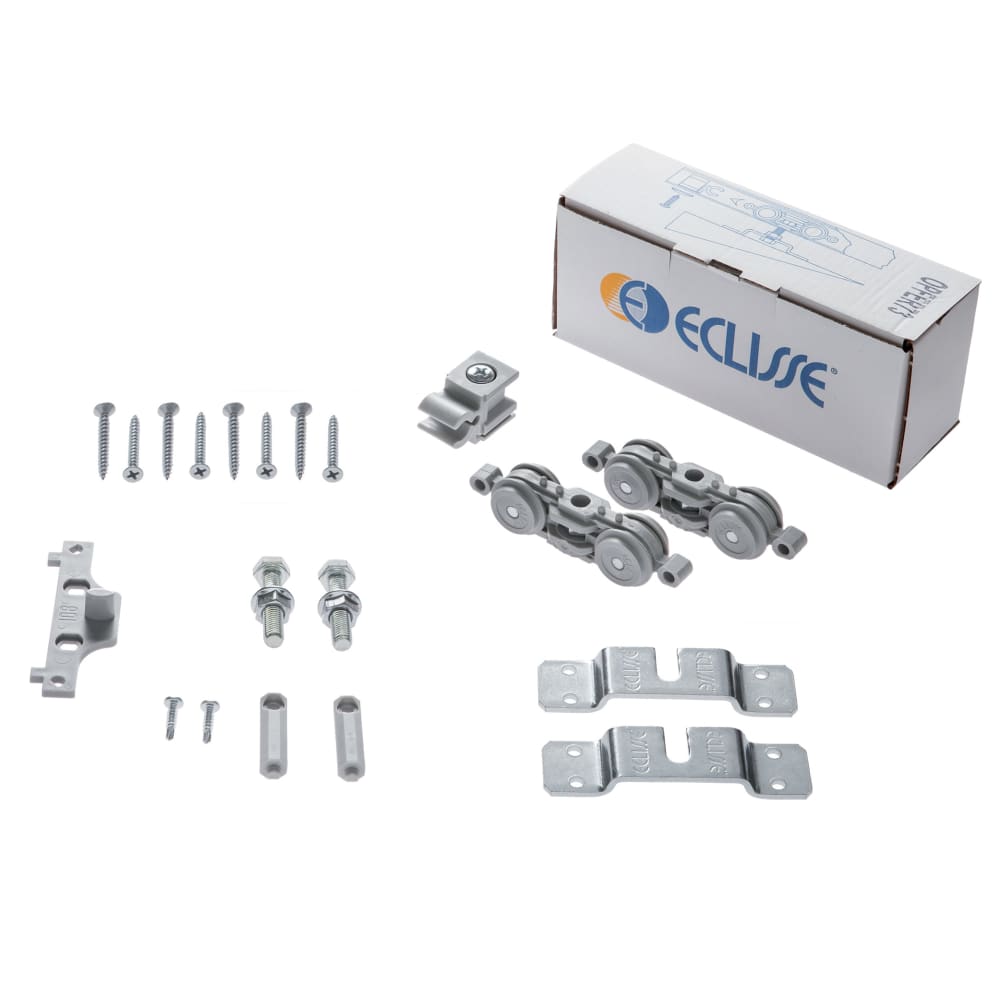

- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee

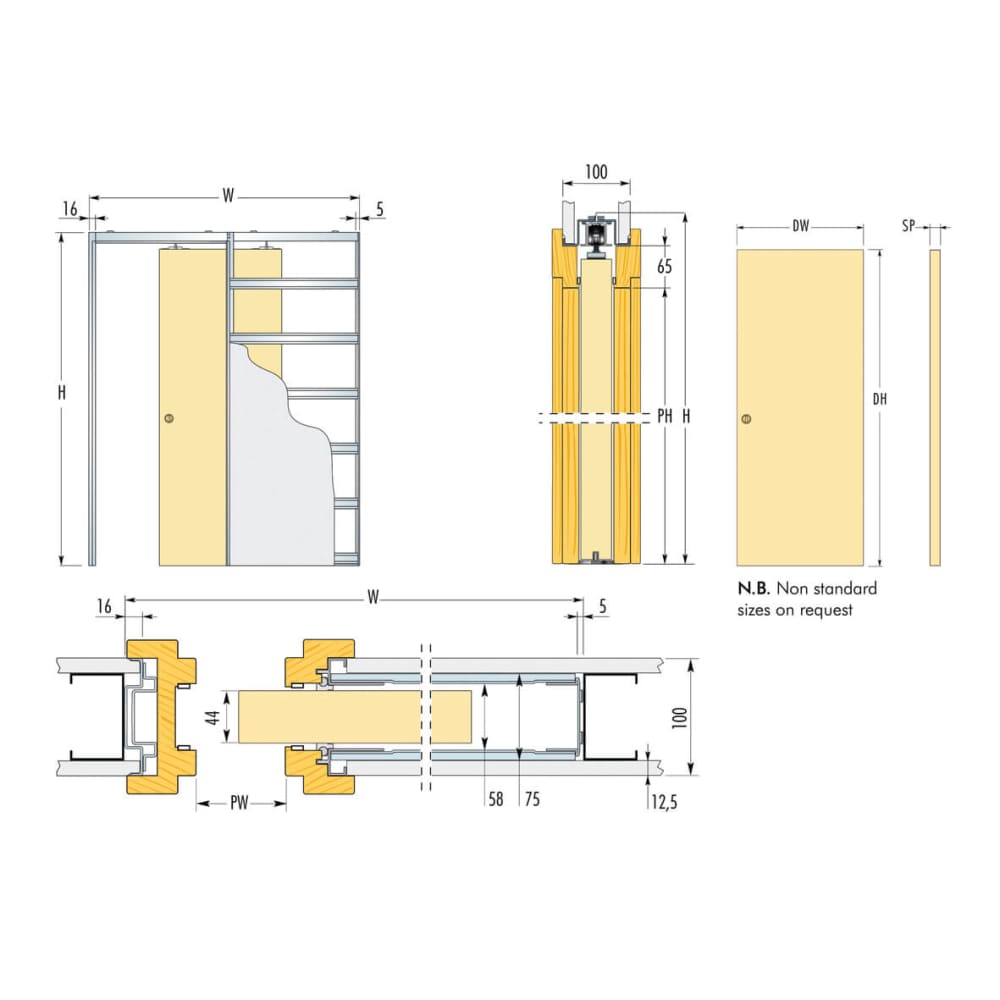

Specification & Documentation
Door Panel Size W x H (mm)
1026 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
978 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
2094 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
Specification & Documentation
Door Panel Size W x H (mm)
1026 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
978 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
2094 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
- A wire pulley system ensures a smooth and quiet operation, low maintenance, and high corrosion resistance
- A universal fit that applies to all ECLISSE single door sizes, max door weight 40kg
- Enables automatic self closing of the door to prevent the spread of fire, so it is also a perfect fit for single pocket Fire doors
Specification & Documentation
Max Door Weight (kg)
40
Type
Self/Soft Close
Material
Mild Steel
Pack Quantity
1
- A wire pulley system ensures a smooth and quiet operation, low maintenance, and high corrosion resistance
- A universal fit that applies to all ECLISSE single door sizes, max door weight 40kg
- Enables automatic self closing of the door to prevent the spread of fire, so it is also a perfect fit for single pocket Fire doors
Specification & Documentation
Max Door Weight (kg)
40
Type
Self/Soft Close
Material
Mild Steel
Pack Quantity
1
About this product
- Pack contains 2 x 2100mm and 1 x 1050mm intumescent strips
- 30 minute fire rated
- Fully tested to BS 476 Pt 20:22 and Pt 31.1 cold smoke leakage
- Independently tested on a range of single and double leaf doorsets
- Ideal for humid environments
- High tack self adhesive backing for quick and easy fitting
- All brushes are black with no plastic fin, reducing noise levels and resistance
Specification & Documentation
Application
Fire & Smoke
Certifire
Yes
Colour
White
Size (mm)
15 x 4
Type
Brushes
Length (mm)
Multipack
Material
Polyvinyl Chloride
Pack Quantity
1
Documents
About this product
- Pack contains 2 x 2100mm and 1 x 1050mm intumescent strips
- 30 minute fire rated
- Fully tested to BS 476 Pt 20:22 and Pt 31.1 cold smoke leakage
- Independently tested on a range of single and double leaf doorsets
- Ideal for humid environments
- High tack self adhesive backing for quick and easy fitting
- All brushes are black with no plastic fin, reducing noise levels and resistance
Specification & Documentation
Application
Fire & Smoke
Certifire
Yes
Colour
White
Size (mm)
15 x 4
Type
Brushes
Length (mm)
Multipack
Material
Polyvinyl Chloride
Pack Quantity
1
Documents
- Suits 35-50mm doors
- 2 x 63mm diameter flush handles and 1 x 30mm diameter finger pull
- A high quality, simple range of flush handles including a door edge finger pull for use on sliding doors
- Ideal for doors that do not require locking
- 10 year guarantee
Specification & Documentation
Finish
Satin Nickel
Option
Round
Size (mm)
63 x 30
Suit Door Thickness (mm)
35-50
Type
Flush Handle
Finish Group
Nickel
Material
Zinc
Documents
- Suits 35-50mm doors
- 2 x 63mm diameter flush handles and 1 x 30mm diameter finger pull
- A high quality, simple range of flush handles including a door edge finger pull for use on sliding doors
- Ideal for doors that do not require locking
- 10 year guarantee
Specification & Documentation
Finish
Satin Nickel
Option
Round
Size (mm)
63 x 30
Suit Door Thickness (mm)
35-50
Type
Flush Handle
Finish Group
Nickel
Material
Zinc
Documents
About this product
- A high quality range of privacy flush handles including a lock, designed to keep your doors locked with an emergency coin release on the outside Ideal for bathrooms & en-suites
- Contains: 2 x 63mm diameter flush handles & 1 x 30mm finger pull
- Suitable for 35-50mm door thickness
- 10 year guarantee
Specification & Documentation
Finish
Polished Chrome
Option
Round
Size (mm)
63
Suit Door Thickness (mm)
35-50
Type
Privacy Set with Bolt
Finish Group
Chrome
Material
Zinc
About this product
- A high quality range of privacy flush handles including a lock, designed to keep your doors locked with an emergency coin release on the outside Ideal for bathrooms & en-suites
- Contains: 2 x 63mm diameter flush handles & 1 x 30mm finger pull
- Suitable for 35-50mm door thickness
- 10 year guarantee
Specification & Documentation
Finish
Polished Chrome
Option
Round
Size (mm)
63
Suit Door Thickness (mm)
35-50
Type
Privacy Set with Bolt
Finish Group
Chrome
Material
Zinc
- Altro Easi T heavy duty tubular latches are designed for both door furniture and door knobs
- The forend can be replaced without having to remove the lock
- Easily reversible on site for left or right handed applications
- Heavy double springing ensures positive return of the lever or knob to its original position whilst the soft bolt spring ensures the latch locates into its keep quietly - an important factor in apartment buildings
- 60 minute fire rating
- Suitable for bolt through door furniture
- Easily reversible onsite for left or right hand applications
- NOTE: Due to the heavy spring within the latch, these tubular latches are not suitable for sprung door furniture
- 10 year guarantee
- NOTE: Intumescent should be used to ensure adherence to fire regulations
Specification & Documentation
Backset (mm)
57
CE Rated
Yes
Case Size (mm)
78
Certifire
Yes
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fire Rating
60
Size (mm)
78 x 23
Type
Latch
UKCA Approved
Yes
Profile
Square
Keyed Alike
No
Option
Tubular
Material
Mild Steel
Pack Quantity
1
- Altro Easi T heavy duty tubular latches are designed for both door furniture and door knobs
- The forend can be replaced without having to remove the lock
- Easily reversible on site for left or right handed applications
- Heavy double springing ensures positive return of the lever or knob to its original position whilst the soft bolt spring ensures the latch locates into its keep quietly - an important factor in apartment buildings
- 60 minute fire rating
- Suitable for bolt through door furniture
- Easily reversible onsite for left or right hand applications
- NOTE: Due to the heavy spring within the latch, these tubular latches are not suitable for sprung door furniture
- 10 year guarantee
- NOTE: Intumescent should be used to ensure adherence to fire regulations
Specification & Documentation
Backset (mm)
57
CE Rated
Yes
Case Size (mm)
78
Certifire
Yes
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fire Rating
60
Size (mm)
78 x 23
Type
Latch
UKCA Approved
Yes
Profile
Square
Keyed Alike
No
Option
Tubular
Material
Mild Steel
Pack Quantity
1
This product is rated 5.0 out of 5 by other customers
A good kit.
I removed our hold hallway wall and rebuilt the stud work to install this. Once I had the stud work installed the install of the pocket door system was trivial. It takes no more than 30 minutes or so to build the kit, then it's a case of taking a little time to install it level - be sure to install at finished floor height (this will avoid extra unessecary trimming of the door or door frame and also give your entrance maximum height). Once the frame is installed the install of the door is simple, two brackets on top and a grove to cut in the base for the floor guide (only tricky bit if you are home DIYer like me - we used a biscuit cutter rather than a router which worked very well).
delivery on time
delivery was on time, product is very good and easy to work with
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
Specification & Documentation
Door Panel Size W x H (mm)
1026 x 2040
Equality Act Compliant
Yes
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
978 x 2010
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
2094 x 2115
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
