SKU: 846191

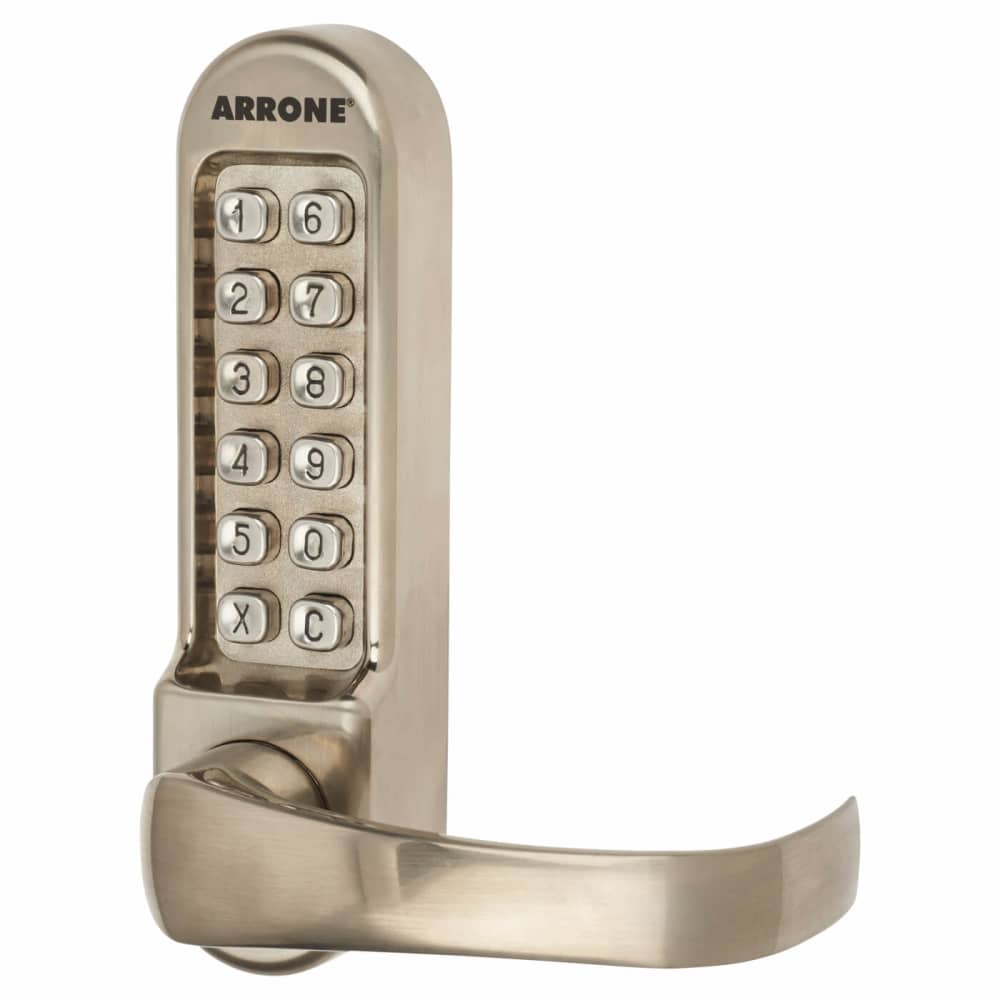

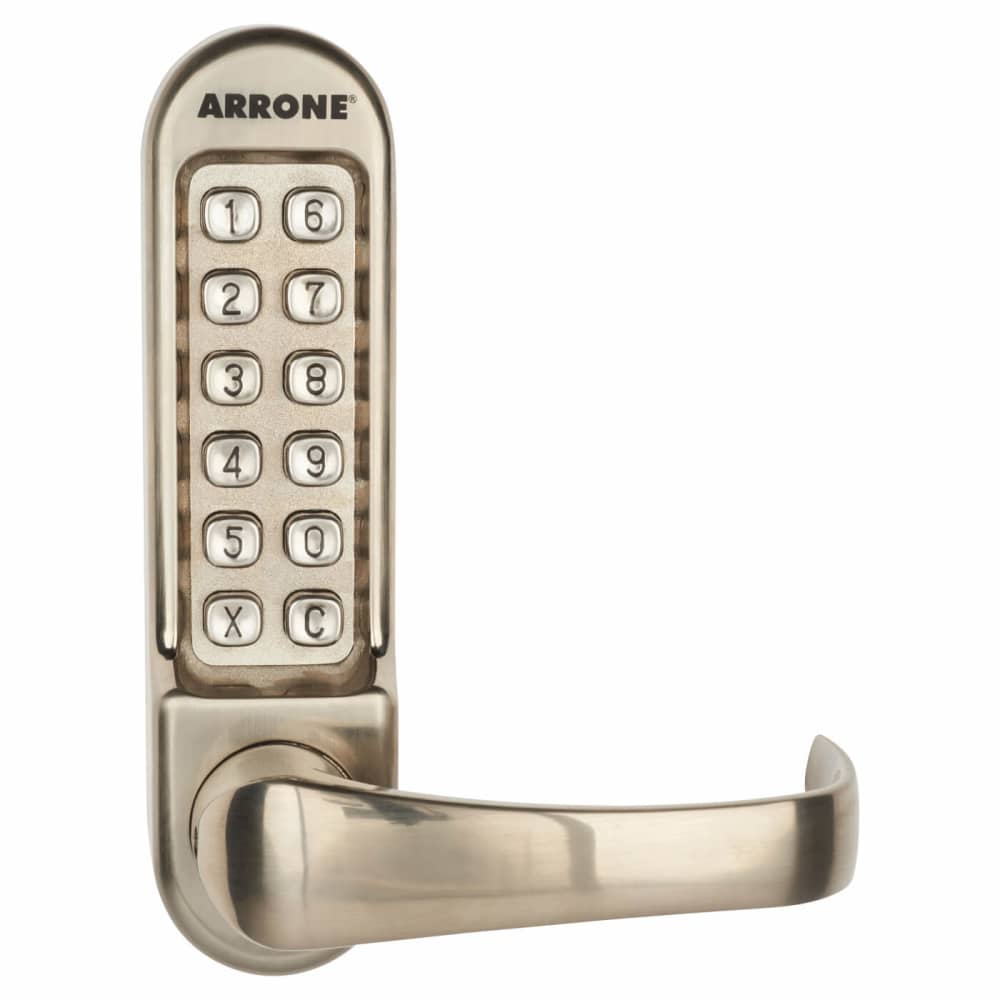

Arrone AR/D-515 Panic Access Code Lock - Brushed Stainless Steel
0.0
(0)
5 in stock
For use with Arrone panic & emergency exit hardware
£95.95
About this product

- A keep for use on flush frames with the Arrone Push Pad Panic Latch
- Suitable for use on timber doors
Specification & Documentation
Application
Timber
To Suit
Single/Double Door
Type
Keep
Material
Zinc
Pack Quantity
1
Documents
About this product

- A keep for use on flush frames with the Arrone Push Pad Panic Latch
- Suitable for use on timber doors
Specification & Documentation
Application
Timber
To Suit
Single/Double Door
Type
Keep
Material
Zinc
Pack Quantity
1
Documents


- For use with Arrone panic & emergency exit hardware
- Fully reversible return to door lever
- 12 digit pin tumbler system
- Non handed, suitable for left or right hand applications
- Supplied with rubber backing plate for protection from external weather & torx anti tamper fixings
- Suitable for timber or metal doors from 33 mm to 55 mm thick
- Testing: BS EN 1634-1. Assessed for use on 30 minute timber fire doors (Only if installed with intumescent pack)
Specification & Documentation
Application
Timber/Metal
Environment
Public
Finish
Brushed Stainless Steel
To Suit
Single Door
Type
Lever
Material
Zinc
Fire Rating
30
Pack Quantity
1


- For use with Arrone panic & emergency exit hardware
- Fully reversible return to door lever
- 12 digit pin tumbler system
- Non handed, suitable for left or right hand applications
- Supplied with rubber backing plate for protection from external weather & torx anti tamper fixings
- Suitable for timber or metal doors from 33 mm to 55 mm thick
- Testing: BS EN 1634-1. Assessed for use on 30 minute timber fire doors (Only if installed with intumescent pack)
Specification & Documentation
Application
Timber/Metal
Environment
Public
Finish
Brushed Stainless Steel
To Suit
Single Door
Type
Lever
Material
Zinc
Fire Rating
30
Pack Quantity
1
About this product

- A keep for use on flush frames with the Arrone Push Pad Panic Latch
- Suitable for use on timber doors
Specification & Documentation
Application
Timber
To Suit
Single/Double Door
Type
Keep
Material
Zinc
Pack Quantity
1
Documents

About this product

- A keep for use on flush frames with the Arrone Push Pad Panic Latch
- Suitable for use on timber doors
Specification & Documentation
Application
Timber
To Suit
Single/Double Door
Type
Keep
Material
Zinc
Pack Quantity
1
Documents
About this product



- For non-public areas
- BS EN 179: An emergency application where the exit door is used by trained personnel, not the general public, in a low occupancy environment. For example: in a low occupancy place of work, never accessed by the public or those unfamiliar with the operating instructions.
- For public areas such as cinemas, schools or hospitals, select products that are BS EN 1125 applicable
- Suitable for any door width
- Reversible
- Single point locking
Specification & Documentation
Application
Timber
CE Rated
Yes
Certifire
Yes
Environment
Non-public
Finish
Silver
Locking Points
1
To Suit
Single Door
Type
Latch
Material
Zinc
Pack Quantity
1


About this product



- For non-public areas
- BS EN 179: An emergency application where the exit door is used by trained personnel, not the general public, in a low occupancy environment. For example: in a low occupancy place of work, never accessed by the public or those unfamiliar with the operating instructions.
- For public areas such as cinemas, schools or hospitals, select products that are BS EN 1125 applicable
- Suitable for any door width
- Reversible
- Single point locking
Specification & Documentation
Application
Timber
CE Rated
Yes
Certifire
Yes
Environment
Non-public
Finish
Silver
Locking Points
1
To Suit
Single Door
Type
Latch
Material
Zinc
Pack Quantity
1
About this product



- Panic latch for single door applications
- Maximum door weight: 200kg
- Supplied with timber fixing screws
- Includes "Push Bar To Open" signage
- Testing: BS EN 1125:2008; BS EN 1634-1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors
- CE Marked: AAA005, UKCA Marked: AAA7651
- Certifire approved: CF810, CE DOP: HUK0022, UKCA DOP: HUK0022-UK
- Note: In accordance with the scope of EN 1125, doors up to 1300mm width are covered by the standard. Doors wider than this will not be covered by the standard and the test evidence gained
Specification & Documentation
Application
Timber
CE Rated
Yes
Certifire
Yes
Environment
Public
Finish
Silver
Locking Points
1
Max Door Width (mm)
1220
To Suit
Single Door
Type
Latch
Material
304 Stainless Steel
Pack Quantity
1


About this product



- Panic latch for single door applications
- Maximum door weight: 200kg
- Supplied with timber fixing screws
- Includes "Push Bar To Open" signage
- Testing: BS EN 1125:2008; BS EN 1634-1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors
- CE Marked: AAA005, UKCA Marked: AAA7651
- Certifire approved: CF810, CE DOP: HUK0022, UKCA DOP: HUK0022-UK
- Note: In accordance with the scope of EN 1125, doors up to 1300mm width are covered by the standard. Doors wider than this will not be covered by the standard and the test evidence gained
Specification & Documentation
Application
Timber
CE Rated
Yes
Certifire
Yes
Environment
Public
Finish
Silver
Locking Points
1
Max Door Width (mm)
1220
To Suit
Single Door
Type
Latch
Material
304 Stainless Steel
Pack Quantity
1
About this product



- Suitable for Arrone Touchbar range of panic hardware
- Steel internal mechanism
- Back to back fixing with the internal device prevents unsightly drill holes
- Fully reversible
- Lever handle mechanism designed to snap when excessive force is applied
- Supplied with 40mm cylinder
- Suitable for use on timber/metal doors up to 200kg
- 8mm spindle for door thicknesses up to 54mm
- Key to unlock/key to relock
- Assessed for use on 30 and 60 minute timber fire doors and 240 minute steel doors
- Successfully type tested as part of both single & double door sets in accordance with the requirements of BS EN1125 & BS EN179
- Certifire approved
Specification & Documentation
Application
Timber/Metal
Certifire
Yes
Finish
Satin Stainless Steel
To Suit
Single/Double Door
Type
Lever
Material
304 Stainless Steel
Pack Quantity
1
CE Rated
Yes
Door Thickness (mm)
54
Option
With Cylinder


About this product



- Suitable for Arrone Touchbar range of panic hardware
- Steel internal mechanism
- Back to back fixing with the internal device prevents unsightly drill holes
- Fully reversible
- Lever handle mechanism designed to snap when excessive force is applied
- Supplied with 40mm cylinder
- Suitable for use on timber/metal doors up to 200kg
- 8mm spindle for door thicknesses up to 54mm
- Key to unlock/key to relock
- Assessed for use on 30 and 60 minute timber fire doors and 240 minute steel doors
- Successfully type tested as part of both single & double door sets in accordance with the requirements of BS EN1125 & BS EN179
- Certifire approved
Specification & Documentation
Application
Timber/Metal
Certifire
Yes
Finish
Satin Stainless Steel
To Suit
Single/Double Door
Type
Lever
Material
304 Stainless Steel
Pack Quantity
1
CE Rated
Yes
Door Thickness (mm)
54
Option
With Cylinder
About this product



- For public areas
- Maximum door height 2440mm
- Maximum door width 1220mm
- 25 year guarantee
- BS EN 1125: A panic application where the exit door is used by the public and provides ""safe and effective escape through the doorway with minimum effort and without prior knowledge of operation"". For example: theatres, shops, schools, hospitals and cinemas
- For non-public areas such as offices, select products that are BS EN 179 applicable
Specification & Documentation
Application
Timber
CE Rated
Yes
Certifire
Yes
Environment
Public
Finish
Silver
Locking Points
3
Max Door Height (mm)
2440
Max Door Width (mm)
1220
To Suit
Double Door
Type
Rebated Bar Set
Material
Zinc
Pack Quantity
1

About this product



- For public areas
- Maximum door height 2440mm
- Maximum door width 1220mm
- 25 year guarantee
- BS EN 1125: A panic application where the exit door is used by the public and provides ""safe and effective escape through the doorway with minimum effort and without prior knowledge of operation"". For example: theatres, shops, schools, hospitals and cinemas
- For non-public areas such as offices, select products that are BS EN 179 applicable
Specification & Documentation
Application
Timber
CE Rated
Yes
Certifire
Yes
Environment
Public
Finish
Silver
Locking Points
3
Max Door Height (mm)
2440
Max Door Width (mm)
1220
To Suit
Double Door
Type
Rebated Bar Set
Material
Zinc
Pack Quantity
1
About this product


- For use with Arrone panic & emergency exit hardware
- Fully reversible return to door lever
- 12 digit pin tumbler system
- Non handed, suitable for left or right hand applications
- Supplied with rubber backing plate for protection from external weather & torx anti tamper fixings
- Suitable for timber or metal doors from 33 mm to 55 mm thick
- Testing: BS EN 1634-1. Assessed for use on 30 minute timber fire doors (Only if installed with intumescent pack)
About this product


- For use with Arrone panic & emergency exit hardware
- Fully reversible return to door lever
- 12 digit pin tumbler system
- Non handed, suitable for left or right hand applications
- Supplied with rubber backing plate for protection from external weather & torx anti tamper fixings
- Suitable for timber or metal doors from 33 mm to 55 mm thick
- Testing: BS EN 1634-1. Assessed for use on 30 minute timber fire doors (Only if installed with intumescent pack)
Specification & Documentation
Application
Timber/Metal
Environment
Public
Finish
Brushed Stainless Steel
To Suit
Single Door
Type
Lever
Material
Zinc
Fire Rating
30
Pack Quantity
1
