SKU: 329967

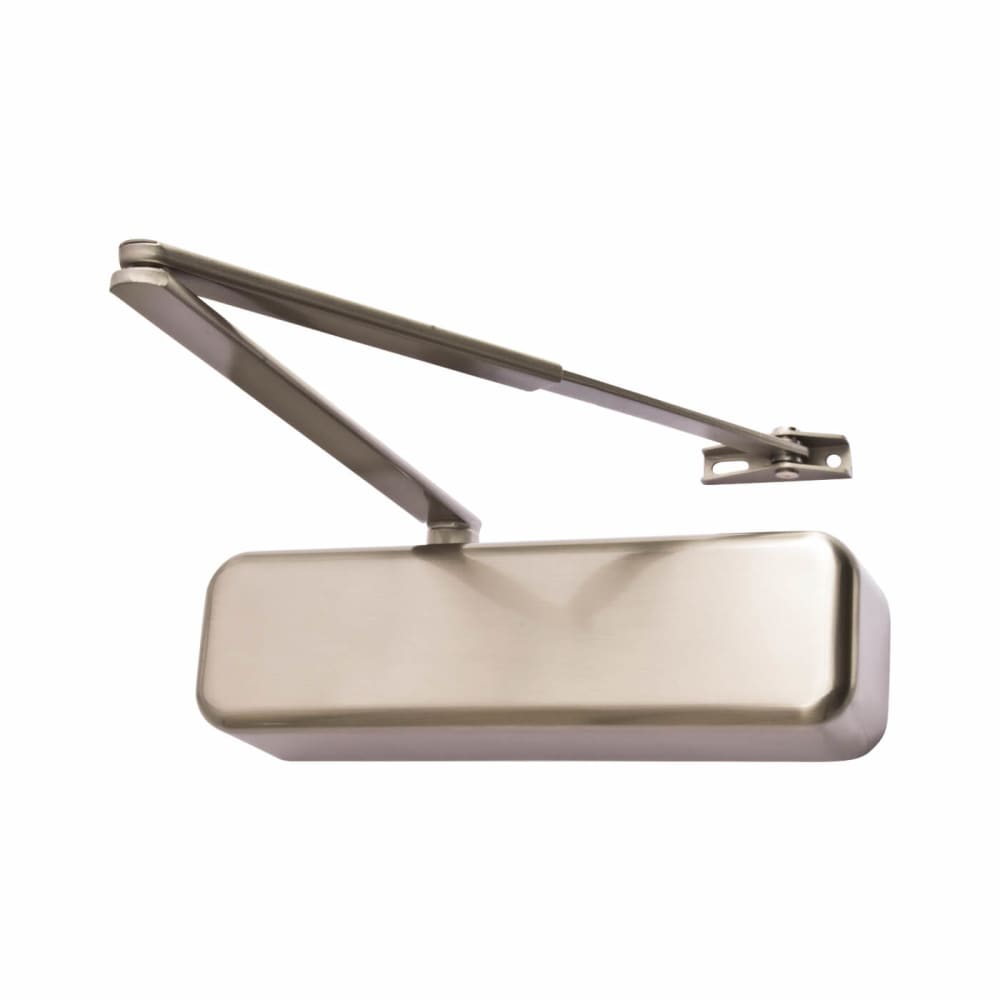

Arrone AR3500 Fire Door Closer - Power Size 4 - Push/Pull Mounting - Satin Stainless Arm/Cover
3.5
(2)
16 in stock
Power size 4 fire door closer
About this product
- Power size 4 fire door closer
- Interior doors up to 1100mm or 80kg max
- Backcheck - Ideal for high traffic doors as it offers resistance when the door is opened with excessive force, preventing damage to doors
- Delayed action - Ideal for care homes & hospitals as this feature slows down the closing speed of the door. The delayed action function is not approved for use with fire doors & can be disabled when fitted to them
- Certifire Approved Product: Certificate CF294
- Hold open function
- Dual handed and universal fixing pack for push or pull side mounting
- Closing and latch speed adjustments for a perfect closing action
- 120 minute fire rating
- 10 year guarantee
- Equality Act compliant A medium duty fire door closer suitable for use in living accommodation and office corridors.
Specification & Documentation
Arm Finish
Satin Stainless
Backcheck
Yes
CE Rated
Yes
Cam Action
No
Certifire
Yes
Cover Finish
Satin Stainless Steel
Delayed Action
Yes
Duty
Medium
Equality Act Compliant
Yes
Finish
Satin Stainless Steel
Fire Rating
120
Max Door Weight (kg)
80
Max Door Width (mm)
1100
Option
Push/Pull Mounting
Power Size
EN 2-4
Track Arm
No
Type
Closer - Overhead
UKCA Approved
Yes
Range
AR1500 / AR3500
Material
Aluminium
Pack Quantity
1
About this product
- Power size 4 fire door closer
- Interior doors up to 1100mm or 80kg max
- Backcheck - Ideal for high traffic doors as it offers resistance when the door is opened with excessive force, preventing damage to doors
- Delayed action - Ideal for care homes & hospitals as this feature slows down the closing speed of the door. The delayed action function is not approved for use with fire doors & can be disabled when fitted to them
- Certifire Approved Product: Certificate CF294
- Hold open function
- Dual handed and universal fixing pack for push or pull side mounting
- Closing and latch speed adjustments for a perfect closing action
- 120 minute fire rating
- 10 year guarantee
- Equality Act compliant A medium duty fire door closer suitable for use in living accommodation and office corridors.
Specification & Documentation
Arm Finish
Satin Stainless
Backcheck
Yes
CE Rated
Yes
Cam Action
No
Certifire
Yes
Cover Finish
Satin Stainless Steel
Delayed Action
Yes
Duty
Medium
Equality Act Compliant
Yes
Finish
Satin Stainless Steel
Fire Rating
120
Max Door Weight (kg)
80
Max Door Width (mm)
1100
Option
Push/Pull Mounting
Power Size
EN 2-4
Track Arm
No
Type
Closer - Overhead
UKCA Approved
Yes
Range
AR1500 / AR3500
Material
Aluminium
Pack Quantity
1
About this product
- Screen printed for durability
- Complete with countersunk screw holes and supplied with screws
Specification & Documentation
Diameter (mm)
75
Finish
Satin Stainless Steel
Material
201 Stainless Steel
Pack Size
1
Size (mm)
75 x 1
Thickness (mm)
1
Option
Standard
Type
Fire Door Keep Shut
Pack Quantity
1
About this product
- Screen printed for durability
- Complete with countersunk screw holes and supplied with screws
Specification & Documentation
Diameter (mm)
75
Finish
Satin Stainless Steel
Material
201 Stainless Steel
Pack Size
1
Size (mm)
75 x 1
Thickness (mm)
1
Option
Standard
Type
Fire Door Keep Shut
Pack Quantity
1
About this product
- Superior quality finger plate for interior doors, without the costly price tag
- From the tried and tested Altro range - stands up to use in commercial and domestic environments
- Pre-drilled screw holes for easy fitting, with fixings included
- 10 year guarantee - buy with confidence knowing these will last for years
Specification & Documentation
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fixing
Screw Fix
Fixing Holes
8
Length (mm)
500
Material
430 Stainless Steel
Option
Engraved Push
Type
Finger Plate
Width (mm)
80
Thickness (mm)
1.5
Corners
Radius
Size (mm)
500 x 80 x 1.5
Pack Quantity
1
About this product
- Superior quality finger plate for interior doors, without the costly price tag
- From the tried and tested Altro range - stands up to use in commercial and domestic environments
- Pre-drilled screw holes for easy fitting, with fixings included
- 10 year guarantee - buy with confidence knowing these will last for years
Specification & Documentation
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fixing
Screw Fix
Fixing Holes
8
Length (mm)
500
Material
430 Stainless Steel
Option
Engraved Push
Type
Finger Plate
Width (mm)
80
Thickness (mm)
1.5
Corners
Radius
Size (mm)
500 x 80 x 1.5
Pack Quantity
1
- Fire Brigade mortice deadlock in a silver finish, for use with an FB2 key
- Supplied without keys - this will require an FB2 deadlock key and is sold separately
- Backset: 51mm
- Case size: 103mm
- Fire Brigade Locks are operated by common keys that are kept by Fire Brigade, Police, Ambulance Services and other authorised personnel. They should not therefore be relied upon for security applications
Specification & Documentation
Backset (mm)
51
Case Size (mm)
103
Finish
Silver
Size (mm)
103 x 80
Type
Deadlock
Depth (mm)
19
Height (mm)
80
Option
FB2
Material
Mild Steel
Pack Quantity
1
Documents
- Fire Brigade mortice deadlock in a silver finish, for use with an FB2 key
- Supplied without keys - this will require an FB2 deadlock key and is sold separately
- Backset: 51mm
- Case size: 103mm
- Fire Brigade Locks are operated by common keys that are kept by Fire Brigade, Police, Ambulance Services and other authorised personnel. They should not therefore be relied upon for security applications
Specification & Documentation
Backset (mm)
51
Case Size (mm)
103
Finish
Silver
Size (mm)
103 x 80
Type
Deadlock
Depth (mm)
19
Height (mm)
80
Option
FB2
Material
Mild Steel
Pack Quantity
1
Documents
About this product
- Practical pull handle for interior doors from the affordable Touchpoint range
- Manufactured from hollow stainless steel, making it lightweight but durable
- Bolt through fixings for a solid, secure fit
- Ideal for low use commercial environments, such as offices or meeting rooms
Specification & Documentation
Centres (mm)
425
Diameter (mm)
19
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fixing
Bolt Fix
Length (mm)
445
Material
304 Stainless Steel
Type
Handle Only
Use
Interior
Handle Type
D-Bar
Projection (mm)
64
Equality Act Compliant
No
Pack Quantity
1
Documents
About this product
- Practical pull handle for interior doors from the affordable Touchpoint range
- Manufactured from hollow stainless steel, making it lightweight but durable
- Bolt through fixings for a solid, secure fit
- Ideal for low use commercial environments, such as offices or meeting rooms
Specification & Documentation
Centres (mm)
425
Diameter (mm)
19
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fixing
Bolt Fix
Length (mm)
445
Material
304 Stainless Steel
Type
Handle Only
Use
Interior
Handle Type
D-Bar
Projection (mm)
64
Equality Act Compliant
No
Pack Quantity
1
Documents
About this product
- Equality Act compliant pull handle that is ideal for public buildings such as schools and hospitals
- From the tried and tested Altro range - hard-working and stylish handles that will stand up to use in commercial and domestic environments
- Made from stainless steel - offers outstanding protection against corrosion, even in damp or external environments
- Plated finish is ideal for high use environments - wont break down or tarnish
- 10 year guarantee - buy with confidence knowing these handles will last for years
Specification & Documentation
Centres (mm)
305
Diameter (mm)
19
Equality Act Compliant
Yes
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fixing
Bolt Fix
Length (mm)
324
Material
304 Stainless Steel
Type
Handle Only
Use
Interior & Exterior
Handle Type
D-Bar
Projection (mm)
66
Pack Quantity
1
Documents
About this product
- Equality Act compliant pull handle that is ideal for public buildings such as schools and hospitals
- From the tried and tested Altro range - hard-working and stylish handles that will stand up to use in commercial and domestic environments
- Made from stainless steel - offers outstanding protection against corrosion, even in damp or external environments
- Plated finish is ideal for high use environments - wont break down or tarnish
- 10 year guarantee - buy with confidence knowing these handles will last for years
Specification & Documentation
Centres (mm)
305
Diameter (mm)
19
Equality Act Compliant
Yes
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fixing
Bolt Fix
Length (mm)
324
Material
304 Stainless Steel
Type
Handle Only
Use
Interior & Exterior
Handle Type
D-Bar
Projection (mm)
66
Pack Quantity
1
Documents
About this product
- Power size 4 fire door closer
- Interior doors up to 1100mm or 80kg max
- Backcheck - Ideal for high traffic doors as it offers resistance when the door is opened with excessive force, preventing damage to doors
- Delayed action - Ideal for care homes & hospitals as this feature slows down the closing speed of the door. The delayed action function is not approved for use with fire doors & can be disabled when fitted to them
- Certifire Approved Product: Certificate CF294
- Hold open function
- Dual handed and universal fixing pack for push or pull side mounting
- Closing and latch speed adjustments for a perfect closing action
- 120 minute fire rating
- 10 year guarantee
- Equality Act compliant A medium duty fire door closer suitable for use in living accommodation and office corridors.
About this product
- Power size 4 fire door closer
- Interior doors up to 1100mm or 80kg max
- Backcheck - Ideal for high traffic doors as it offers resistance when the door is opened with excessive force, preventing damage to doors
- Delayed action - Ideal for care homes & hospitals as this feature slows down the closing speed of the door. The delayed action function is not approved for use with fire doors & can be disabled when fitted to them
- Certifire Approved Product: Certificate CF294
- Hold open function
- Dual handed and universal fixing pack for push or pull side mounting
- Closing and latch speed adjustments for a perfect closing action
- 120 minute fire rating
- 10 year guarantee
- Equality Act compliant A medium duty fire door closer suitable for use in living accommodation and office corridors.
Specification & Documentation
Arm Finish
Satin Stainless
Backcheck
Yes
CE Rated
Yes
Cam Action
No
Certifire
Yes
Cover Finish
Satin Stainless Steel
Delayed Action
Yes
Duty
Medium
Equality Act Compliant
Yes
Finish
Satin Stainless Steel
Fire Rating
120
Max Door Weight (kg)
80
Max Door Width (mm)
1100
Option
Push/Pull Mounting
Power Size
EN 2-4
Track Arm
No
Type
Closer - Overhead
UKCA Approved
Yes
Range
AR1500 / AR3500
Material
Aluminium
Pack Quantity
1
