SKU: 188958

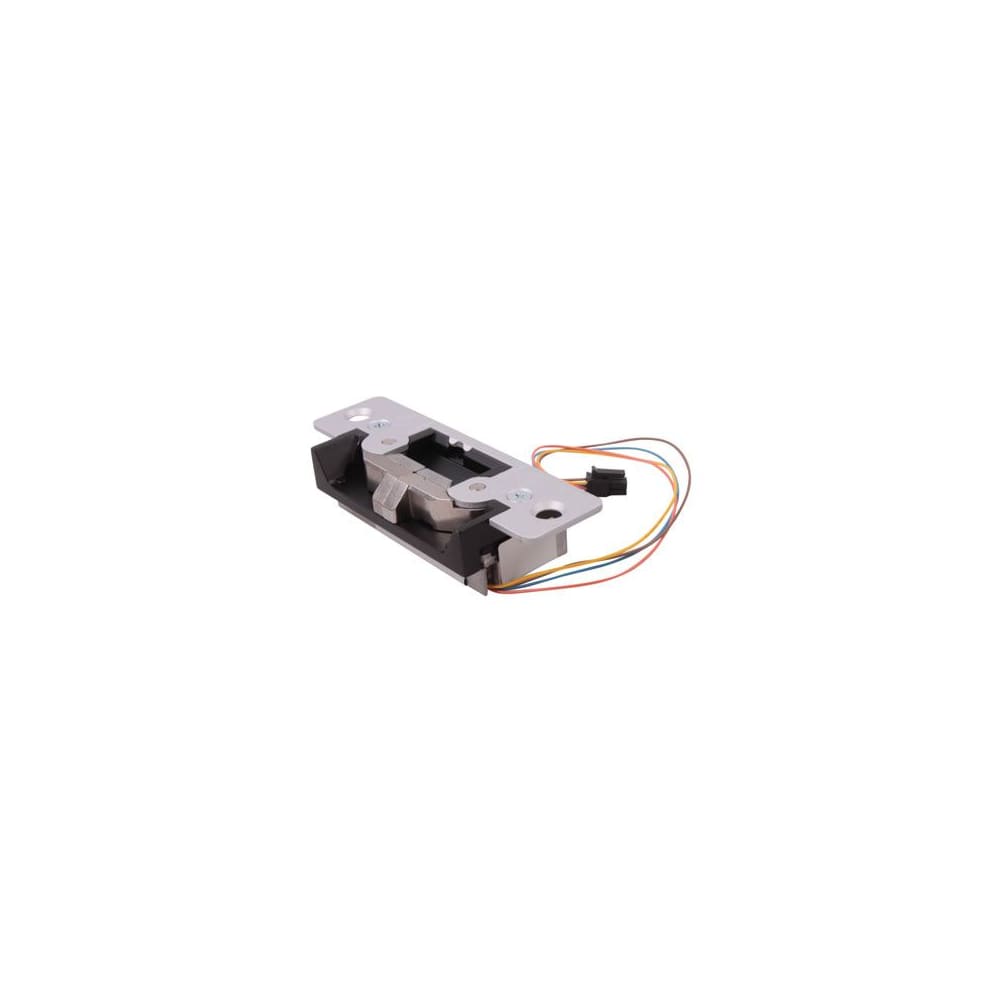

Adams Rite 7400-628 Electric Strike Door Release - Metal Doors
4.4
(18)
22 in stock
One of the most flexible strikes on the market - fully field configurable and high security for aluminium doors
Buy in bulk & save up to 5%
About this product
- Faceplate for use with the Adams Rite 4710 screw cylinder deadlatch
Specification & Documentation
Finish
Satin Anodised Aluminium
Option
Flat Faceplate
Size (mm)
174 x 25
Type
Faceplate
Material
304 Stainless Steel
About this product
- Faceplate for use with the Adams Rite 4710 screw cylinder deadlatch
Specification & Documentation
Finish
Satin Anodised Aluminium
Option
Flat Faceplate
Size (mm)
174 x 25
Type
Faceplate
Material
304 Stainless Steel
About this product
- One of the most flexible strikes on the market - fully field configurable and high security for aluminium doors
- Opens under sideload pressure of 15kg due to split jaw design
- 1080kg holding force
- Multivoltage 12/24v AC or DC allowing flexibility to change on site
- On site Field Selectable for fail safe or fail secure
- Compact depth 27mm to fit into glazing pockets
- Low current draw, requires half the force to open compared with other strikes, aiding in compliance with approved doc M
- Retrofits all previous Adams Rite strikes
Specification & Documentation
Depth (mm)
27
Holding Force (kg)
1080
Length (mm)
124
Option
Aluminium Door
Size (mm)
124 x 43 x 27
Supply Voltage (VAC)/VDC
12/24
Type
Electric Strike Releases
Width (mm)
43
Material
Aluminium
About this product
- One of the most flexible strikes on the market - fully field configurable and high security for aluminium doors
- Opens under sideload pressure of 15kg due to split jaw design
- 1080kg holding force
- Multivoltage 12/24v AC or DC allowing flexibility to change on site
- On site Field Selectable for fail safe or fail secure
- Compact depth 27mm to fit into glazing pockets
- Low current draw, requires half the force to open compared with other strikes, aiding in compliance with approved doc M
- Retrofits all previous Adams Rite strikes
Specification & Documentation
Depth (mm)
27
Holding Force (kg)
1080
Length (mm)
124
Option
Aluminium Door
Size (mm)
124 x 43 x 27
Supply Voltage (VAC)/VDC
12/24
Type
Electric Strike Releases
Width (mm)
43
Material
Aluminium
About this product
- Operates with Euro profile cylinders
- Reversible but supplied handed for ease of fitting
- Operates up to 5mm door/frame gap
- Order 4710 faceplates, strikes and accessories to suit this model
- Holdback facility and anti-pick baffle
- Escape doors comply to BS EN 179 when used with paddle handle and armour strike
Specification & Documentation
Backset (mm)
24
Case Size (mm)
40.6
Finish
Zinc Plated
Hand
Right
Option
Euro Profile
Size (mm)
174.7 x 25
Type
Deadlatch
Material
Zinc
About this product
- Operates with Euro profile cylinders
- Reversible but supplied handed for ease of fitting
- Operates up to 5mm door/frame gap
- Order 4710 faceplates, strikes and accessories to suit this model
- Holdback facility and anti-pick baffle
- Escape doors comply to BS EN 179 when used with paddle handle and armour strike
Specification & Documentation
Backset (mm)
24
Case Size (mm)
40.6
Finish
Zinc Plated
Hand
Right
Option
Euro Profile
Size (mm)
174.7 x 25
Type
Deadlatch
Material
Zinc
- Operates with Euro profile cylinders
- Reversible but supplied handed for ease of fitting
- Operates up to 5mm door/frame gap
- Order 4710 faceplates, strikes and accessories to suit this model
- Holdback facility and anti-pick baffle
- Escape doors comply to BS EN 179 when used with paddle handle and armour strike
Specification & Documentation
Backset (mm)
24
Case Size (mm)
40.6
Finish
Zinc Plated
Hand
Left
Option
Euro Profile
Size (mm)
174.7 x 25
Type
Deadlatch
Material
Zinc
- Operates with Euro profile cylinders
- Reversible but supplied handed for ease of fitting
- Operates up to 5mm door/frame gap
- Order 4710 faceplates, strikes and accessories to suit this model
- Holdback facility and anti-pick baffle
- Escape doors comply to BS EN 179 when used with paddle handle and armour strike
Specification & Documentation
Backset (mm)
24
Case Size (mm)
40.6
Finish
Zinc Plated
Hand
Left
Option
Euro Profile
Size (mm)
174.7 x 25
Type
Deadlatch
Material
Zinc
About this product
- Short faceplate for metal doors
- 12v DC
Specification & Documentation
Depth (mm)
19
Length (mm)
124
Option
Fail Unlocked
Size (mm)
124 x 43 x 19
Supply Voltage (VDC)
12
Type
Electric Strike Releases
Width (mm)
43
Material
Aluminium
About this product
- Short faceplate for metal doors
- 12v DC
Specification & Documentation
Depth (mm)
19
Length (mm)
124
Option
Fail Unlocked
Size (mm)
124 x 43 x 19
Supply Voltage (VDC)
12
Type
Electric Strike Releases
Width (mm)
43
Material
Aluminium
About this product
- Used for sealing door frames to walls and bedding hinges, locks and door furniture
- Successfully tested to BS476
Specification & Documentation
Fire Rating
60
Size (mm)
1000 x 38 x 1.8
Type
Uncut Gaskets
Material
Graphite
About this product
- Used for sealing door frames to walls and bedding hinges, locks and door furniture
- Successfully tested to BS476
Specification & Documentation
Fire Rating
60
Size (mm)
1000 x 38 x 1.8
Type
Uncut Gaskets
Material
Graphite
This product is rated 4.4 out of 5 by other customers
Superb product at an amazing price
This lock was purchased to replace a failed lock on a building we recently took on and it was a like for like replacement so very easy to fit. I do not know the age of the building so the failed lock could have been very old but other reviews on this product always seem favorable and the fact that the same product is still manufactured must indicate it still sells well.
Does what it says
Straight replacement after 7 years of constant use
Perfect for my job!
Replacement item and good price and quick delivery.
About this product
- One of the most flexible strikes on the market - fully field configurable and high security for aluminium doors
- Opens under sideload pressure of 15kg due to split jaw design
- 1080kg holding force
- Multivoltage 12/24v AC or DC allowing flexibility to change on site
- On site Field Selectable for fail safe or fail secure
- Compact depth 27mm to fit into glazing pockets
- Low current draw, requires half the force to open compared with other strikes, aiding in compliance with approved doc M
- Retrofits all previous Adams Rite strikes
About this product
- One of the most flexible strikes on the market - fully field configurable and high security for aluminium doors
- Opens under sideload pressure of 15kg due to split jaw design
- 1080kg holding force
- Multivoltage 12/24v AC or DC allowing flexibility to change on site
- On site Field Selectable for fail safe or fail secure
- Compact depth 27mm to fit into glazing pockets
- Low current draw, requires half the force to open compared with other strikes, aiding in compliance with approved doc M
- Retrofits all previous Adams Rite strikes
Specification & Documentation
Depth (mm)
27
Holding Force (kg)
1080
Length (mm)
124
Option
Aluminium Door
Size (mm)
124 x 43 x 27
Supply Voltage (VAC)/VDC
12/24
Type
Electric Strike Releases
Width (mm)
43
Material
Aluminium
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Anonymous - 5 years ago
Superb product at an amazing price
This lock was purchased to replace a failed lock on a building we recently took on and it was a like for like replacement so very easy to fit. I do not know the age of the building so the failed lock could have been very old but other reviews on this product always seem favorable and the fact that the same product is still manufactured must indicate it still sells well.
Was this review helpful?
Verified customer
Geoffrey the man - 6 years ago
Does what it says
Straight replacement after 7 years of constant use
Was this review helpful?
Verified customer
Gary ly - 6 years ago
Perfect for my job!
Replacement item and good price and quick delivery.
Was this review helpful?
Verified customer
Richard Bowden brown - 7 years ago
Just as required
Needed a replacement urgently and received next day Perfect
Was this review helpful?
Verified customer
Page 1 of 1
Questions
